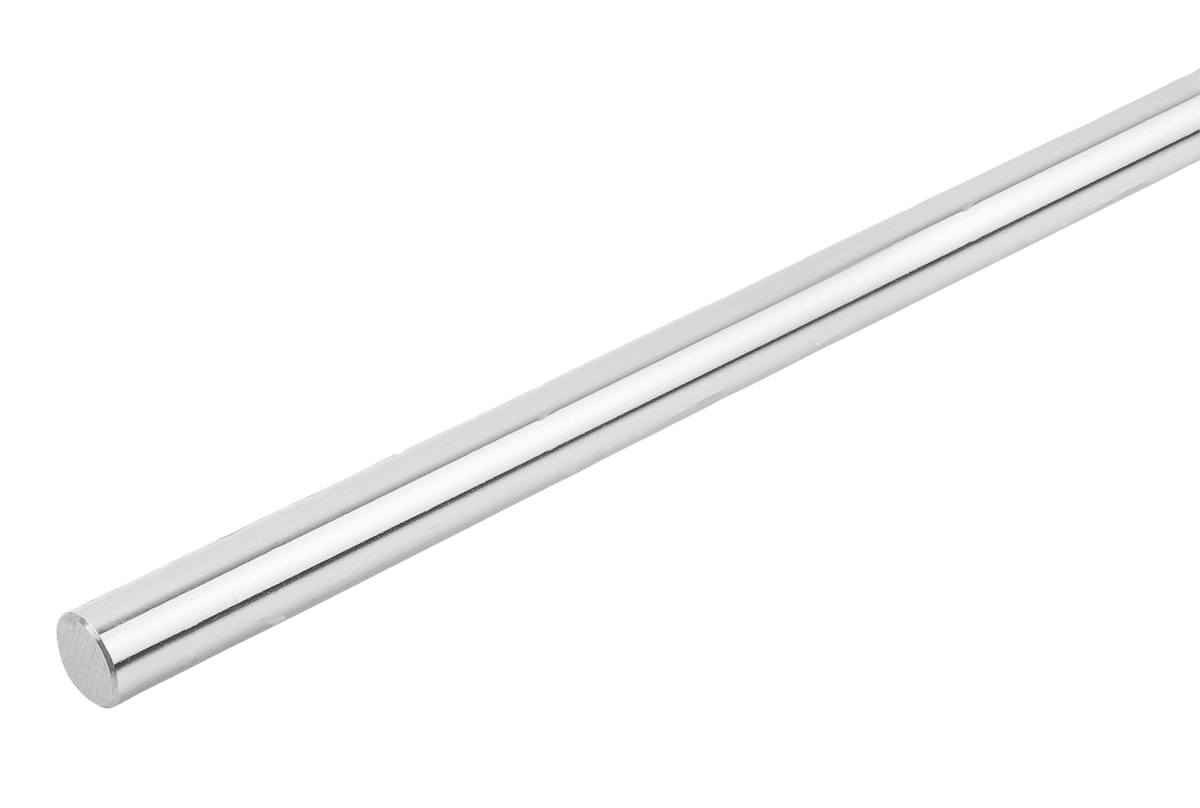

Precision Guide Shaft
steel
hardened and ground
- Inductively surface hardened
- Surface provides high wear resistance
Sales unit
£15.64
plus sales tax
Registered customers are offered live availability of the item after logging in to the website. Please log in or register to see the live availability or request a quotation.
Added to your shopping cart
Item
Precision Guide Shaft
Main
material
steel
Surface finish
body
hardened and ground
Steel code
1.1213
D=diameter
8h6
L=Length
1000
Hardening
depth
max.
1
L
max.
4000
RoHS
true
Surface
hardness
HRC
62 ±2
Description
Material
Steel 1.1213.
Stainless steel 1.4034.
Stainless steel 1.4112.
Version
Steel, ground.
Steel, ground and hard-chromed, chrome coating 5 - 10 µm.
Stainless steel, ground.
The precision steel shafts are generally inductively surface hardened.
Steel, ground and hard-chromed, chrome coating 5 - 10 µm.
Stainless steel, ground.
The precision steel shafts are generally inductively surface hardened.
Note
The surface value obtained during the inductive hardening process guarantees high surface wear resistance.
On request
Processing of the ends and cylindrical lateral areas according to customer design. Lengths up to a max. 4000 mm.
Drawing reference
1) chamfered
