21595

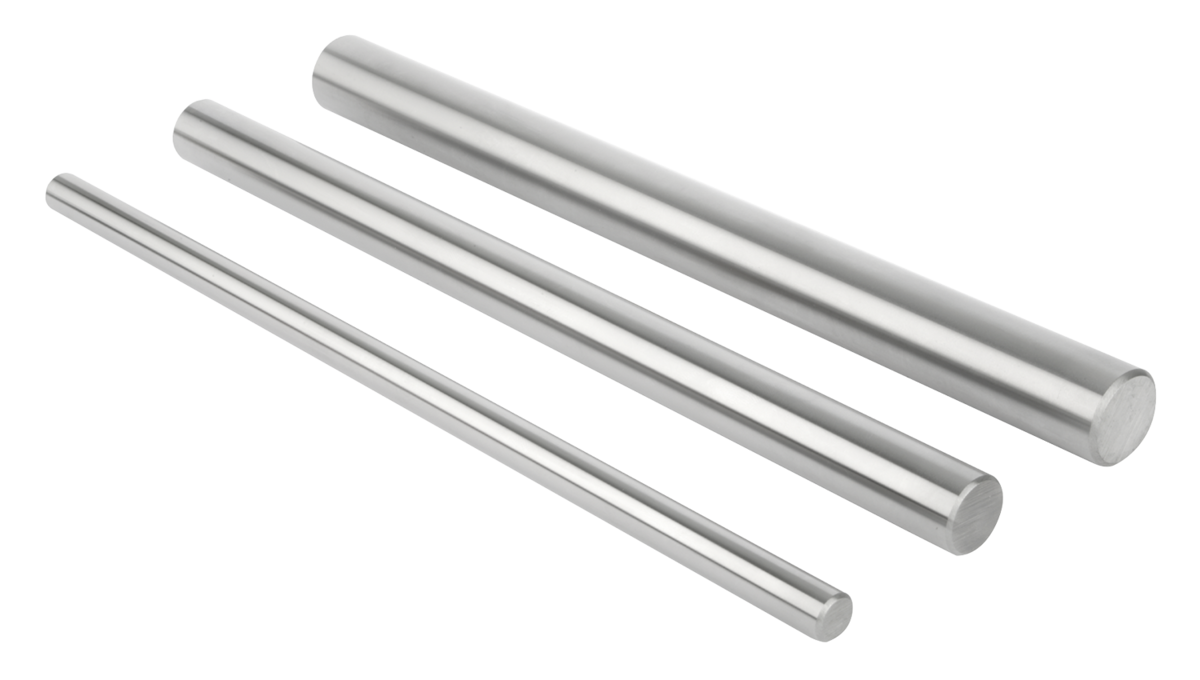

Precision guide shafts

  • Inductively surface hardened
  • Surface provides high wear resistance
Special features:

from £11.74

plus sales tax
  • 1(current)
  • 2
  • 3
47 results found
  • 1(current)
  • 2
  • 3

Description

Material
Steel 1.1213.

Stainless steel 1.4034.

Stainless steel 1.4112.
Version
Steel, ground.
Steel, ground and hard-chromed, chrome coating 5 - 10 µm.
Stainless steel, ground.

The precision steel shafts are generally inductively surface hardened.
Note
The surface value obtained during the inductive hardening process guarantees high surface wear resistance.
Processing of the ends and cylindrical lateral areas according to customer design. Lengths up to a max. 4000 mm.

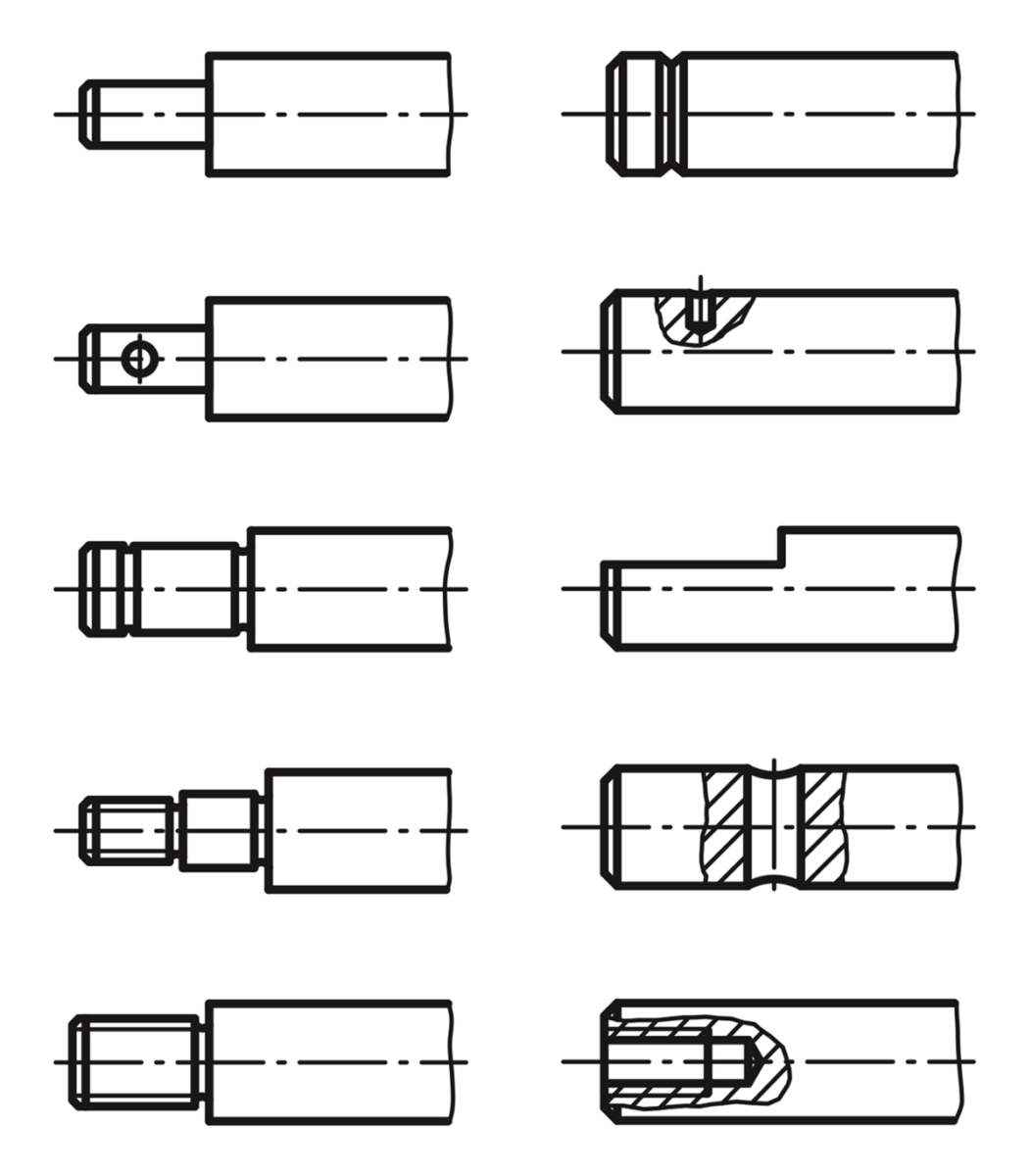

Drawing reference
1) chamfered
