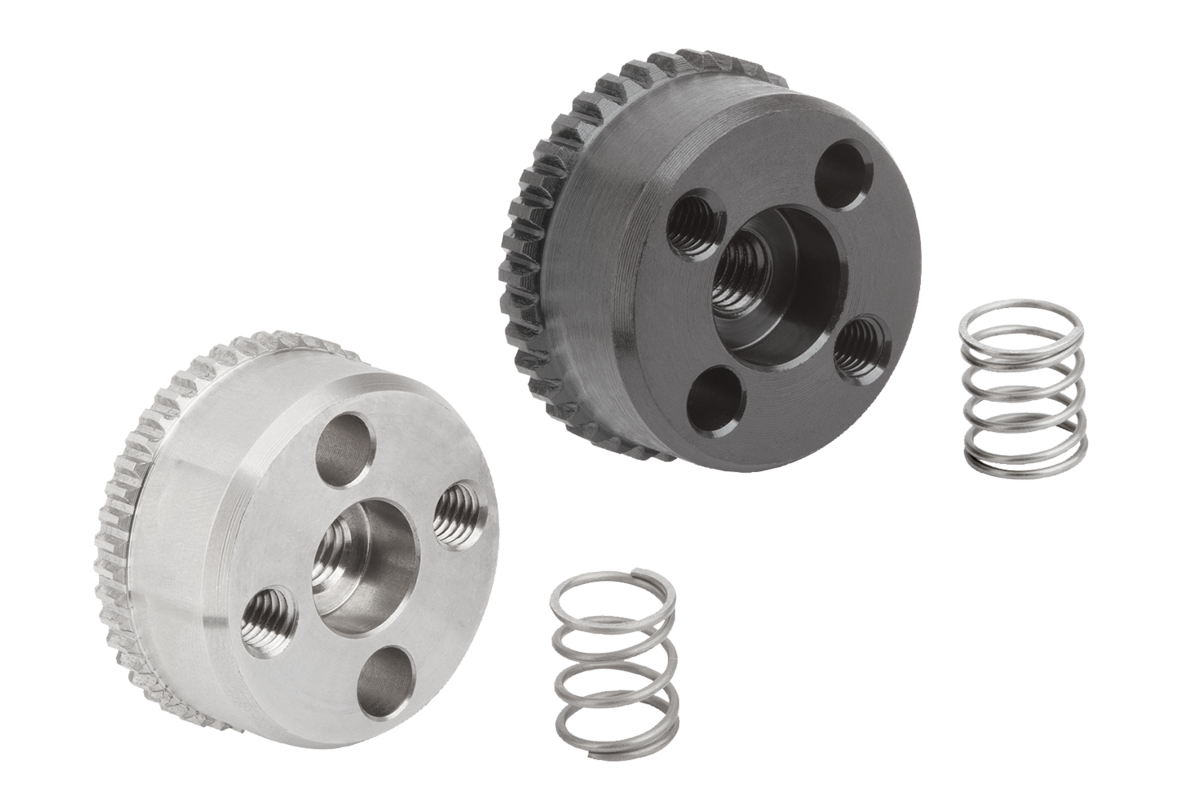

Ratchet elements, Form G with external toothing

  • Flexible fastening options due to the combination of snap-in elements
  • Defined position due to positive connection
  • compact design
  • Small adjustable angle (9° or 7.5°)
Special features:

from £10.80

plus sales tax


Ratchet element steel 1.0718 or stainless steel 1.4305.

Spring stainless steel 1.4310.

Cap screws steel or stainless steel A 2.
Ratchet element black oxidised steel or bright stainless steel.
Spring bright.
Cap screw blackened steel grade 8.8 or bright A 2-70 stainless steel.
Note for ordering
2 cap screws M3x8 or M5x10 are supplied with the internal toothed ratchet elements Forms A and B.
A stainless steel spring is supplied with the external toothed ratchet elements Forms E to H.
Use DIN 7984 low headed cap screws for fastening the Form A and B ratchet elements.
The ratchet elements are used for rotary adjustment of components. Fastening options can be arranged according to the application.

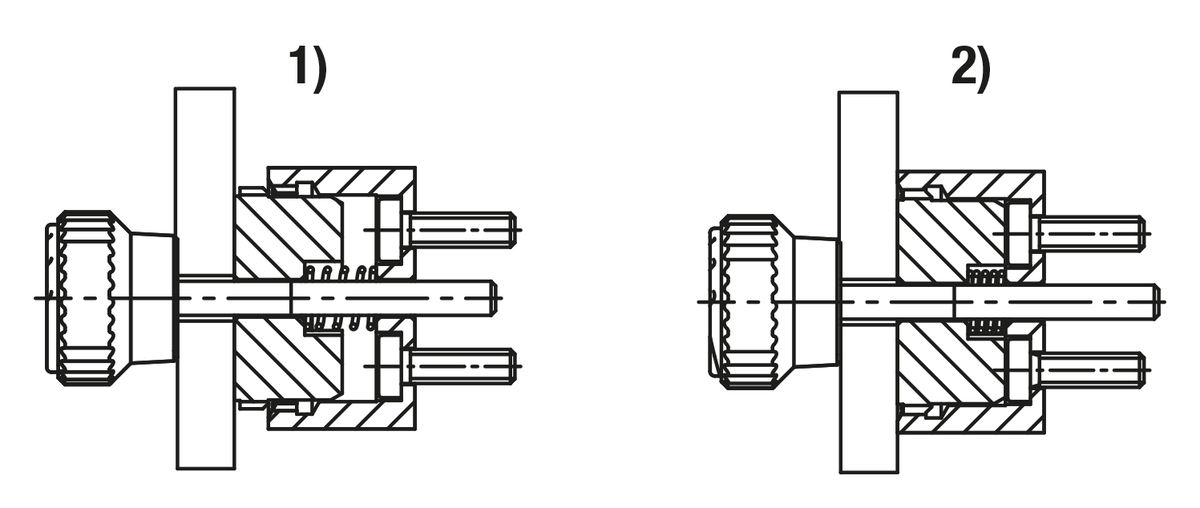

Drawing reference
1) disengaged
2) engaged
