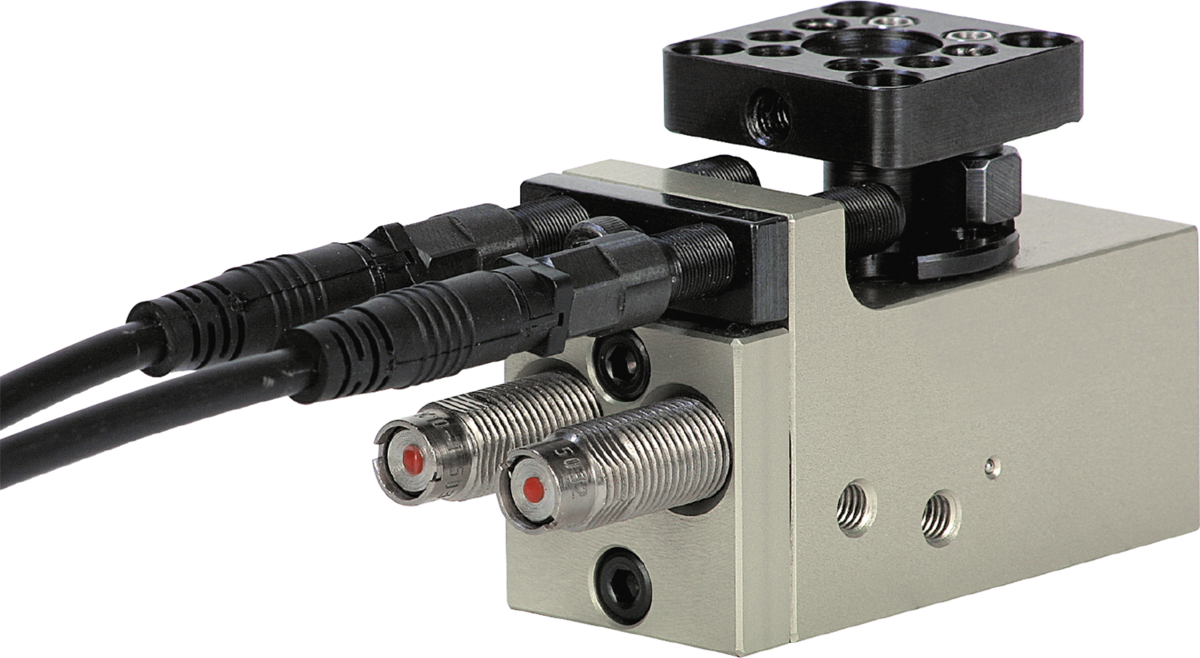

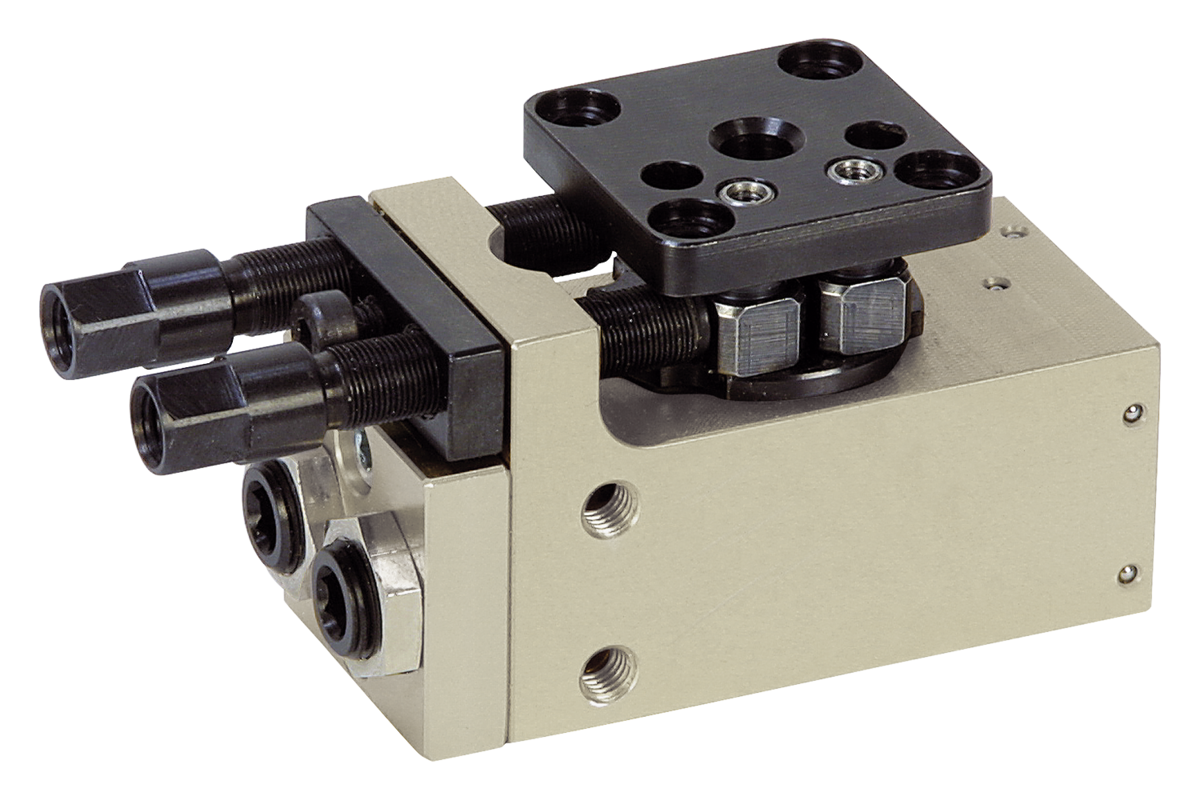

Rotary Module
pneumatic
aluminium
- For small installation spaces with double-acting drive cylinder
- Rotation angle infinitely adjustable from 0° to 190°
- High fit precision between the modules via centring system
- Hardened, external and variable stop system
- Repeat accuracy ±0.01°
Sales unit
£557.92
plus sales tax
Added to your shopping cart
Designation
Rotary Module
Size
4
Version 1
pneumatic
Body material
aluminium
Component material
steel
D2=Cylinder Ø
2X10
For=For proximity switch
20915-010
For=Suitable connector
20960-010X2000
For=Suitable shock absorber
26300-1010008
L1=Axial load N
300
L2=Radial load N
220
M3=Driving torque Nm
0,28
V6=Air consumption per cycle
5
VD=Rotation angle
0° - 190°
Description
Material
Housing high-strength aluminium.
Stop system steel.
Stop system steel.
Version
Housing anodised.
Stop system hardened and black oxidised.
Stop system hardened and black oxidised.
Note
Maintenance-free pneumatic rotary module for small installation spaces with double actuated drive cylinder. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 µm), dried, oiled or unoiled. Compressed air connection M5.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
The 0° – 190° rotation angle is infinitely adjustable.
Repeat accuracy ±0.01°.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
The 0° – 190° rotation angle is infinitely adjustable.
Repeat accuracy ±0.01°.
Accessory
See table for shock absorber, proximitiy switch and plug connector.
