{"product":{"productId":"agid.4150","price":28.11,"name":"CAPTIVE C-WASHER, D3=12 QT STEEL"},"currency":"GBP"}

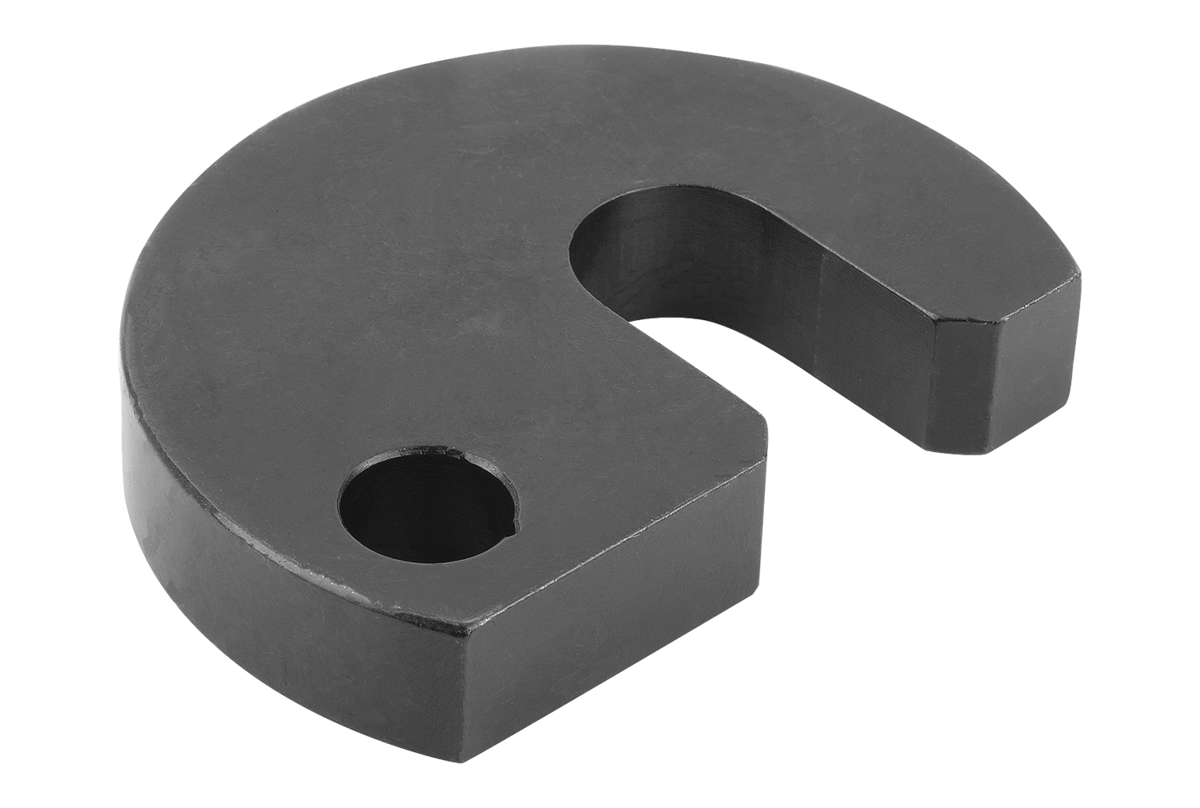

Captive C-Washer
QT steel
nitrided and black oxidised

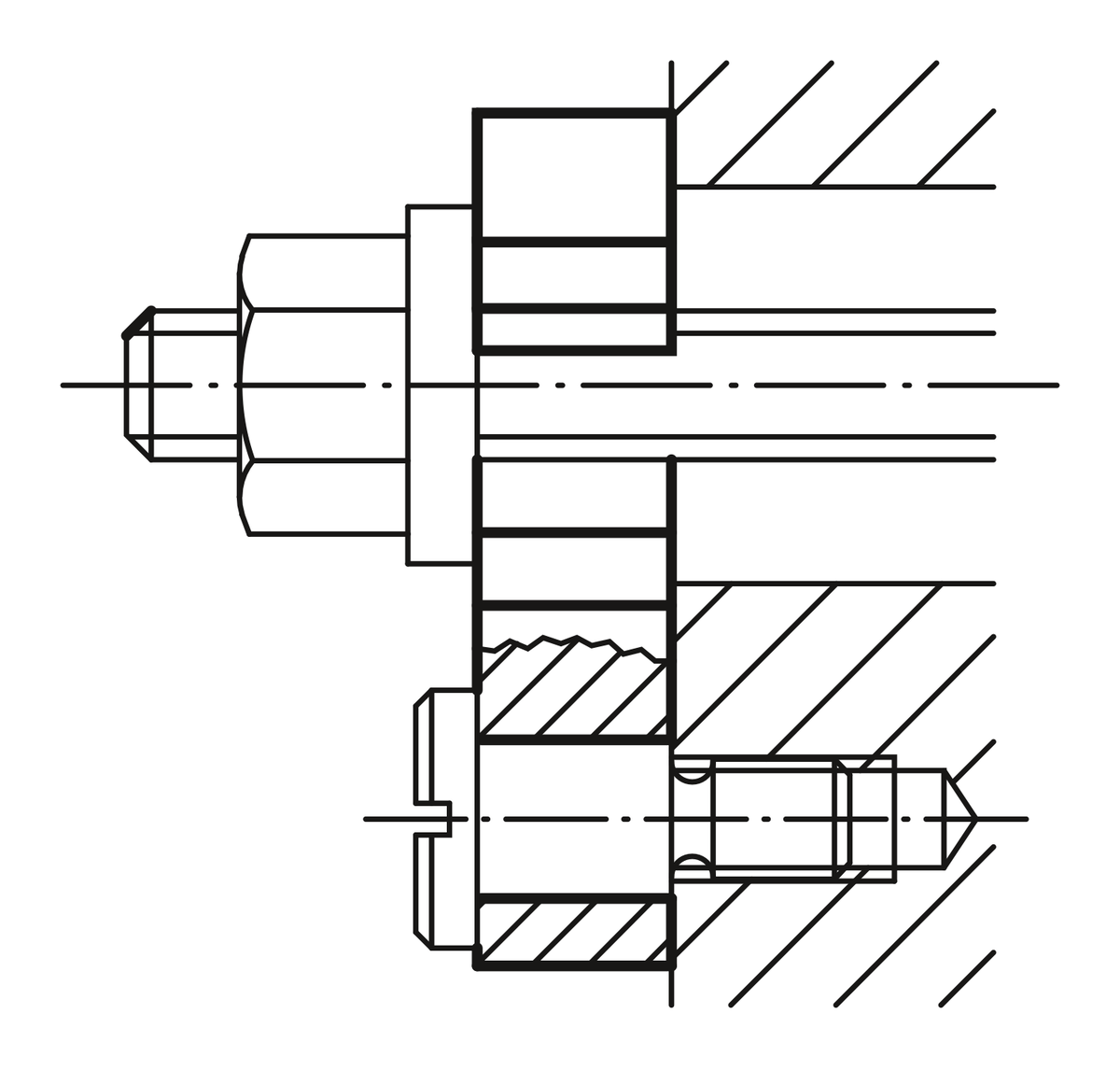

- Can be dismantled without completely removing the screws
- Captive
Sales unit
£28.11
plus sales tax
Registered customers are offered live availability of the item after logging in to the website. Please log in or register to see the live availability or request a quotation.
Added to your shopping cart
Item
Captive C-Washer
Product type
washer
DIN
DIN 6371
Main
material
QT steel
Surface finish
body
nitrided and black oxidised
Steel code
1.0760
D2=Outside diameter
61
G=thread / for thread
M11
H=Height
11,8
B
13,5
D1
11
D3
12
F
3
Kind of fastening
bore
L1
29,6
L2
22
L3
45
L4
29
RoHS
true
Description
Material
Carbon steel 1.0760.
Version
Nitrided and black oxidised.
Note
07520-14 is not a DIN standard.
For suitable shoulder screws see 07530.
For suitable shoulder screws see 07530.
Important note on downloading CAD models
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
