07794

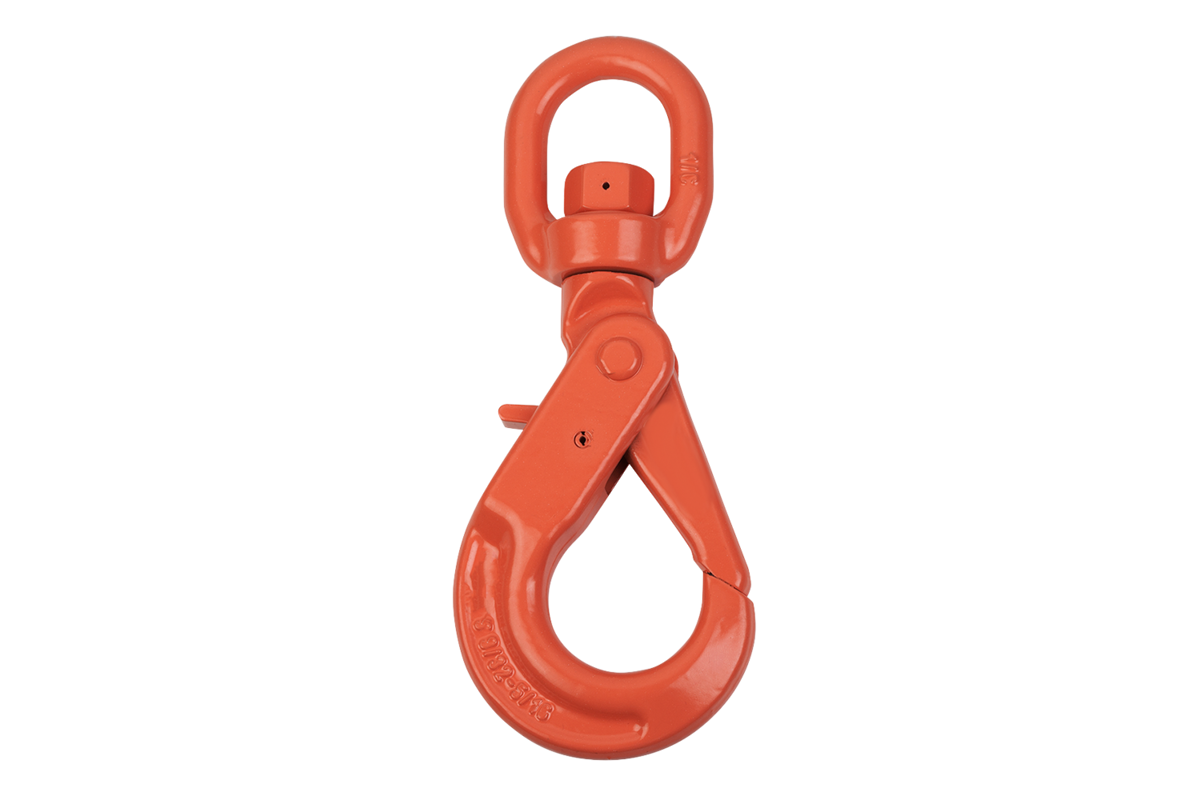

Swivel hooks grade 10
-
SWIVEL HOOK WITH PLAIN BEARING, FORM:A STEEL, FT=1400Item No. 07794-11001400
- FT=Load capacity kg
- 1400
- For chain mm
- 6
from £79.20plus sales taxplus shipping costsMore details -
SWIVEL HOOK WITH PLAIN BEARING, FORM:A STEEL, FT=2500Item No. 07794-11002500
- FT=Load capacity kg
- 2500
- For chain mm
- 7-8
from £94.83plus sales taxplus shipping costsMore details -
SWIVEL HOOK WITH PLAIN BEARING, FORM:A STEEL, FT=4000Item No. 07794-11004000
- FT=Load capacity kg
- 4000
- For chain mm
- 10
from £137.90plus sales taxplus shipping costsMore details -
SWIVEL HOOK WITH PLAIN BEARING, FORM:A STEEL, FT=6700Item No. 07794-11006700
- FT=Load capacity kg
- 6700
- For chain mm
- 13
from £189.80plus sales taxplus shipping costsMore details -
SWIVEL HOOK WITH PLAIN BEARING, FORM:A STEEL, FT=10000Item No. 07794-11010000
- FT=Load capacity kg
- 10000
- For chain mm
- 16
from £305.67plus sales taxplus shipping costsMore details
Description
Material
Steel.
Version
Grade 10.
Plastic-coated, red.
Plastic-coated, red.
Note
Fitted with smooth-running plain bearings. Not suitable for swivelling while under load.
When lifting the load, the safety latch closes automatically and is securely locked by a locking mechanism at the rear of the hook. To open the latch, the locking mechanism must be unlocked manually.
The swivel hooks correspond to the Machinery Directive and are BG certified (H stamp).
When lifting the load, the safety latch closes automatically and is securely locked by a locking mechanism at the rear of the hook. To open the latch, the locking mechanism must be unlocked manually.
The swivel hooks correspond to the Machinery Directive and are BG certified (H stamp).
Temperature range
From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible load
Please log in to download CAD drawings.
