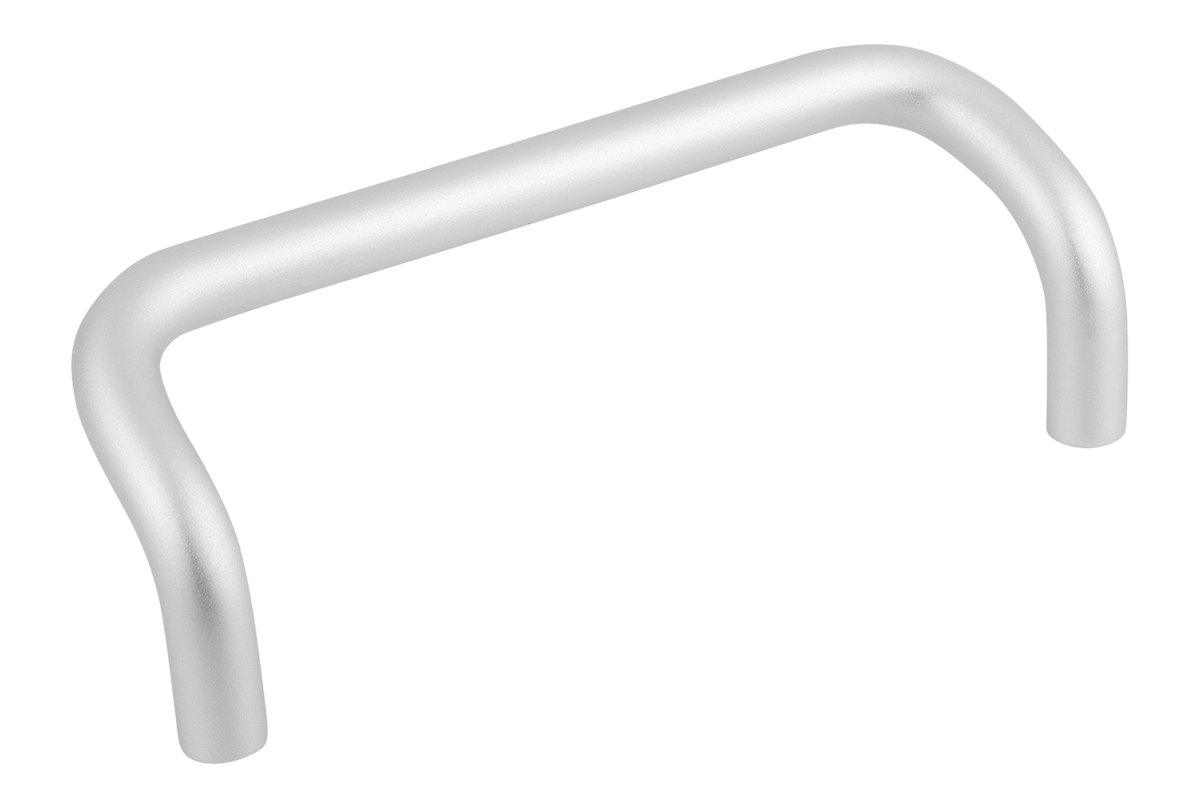

Pull Handle
angled
aluminium
natural
anodised
- Retaining element to open and close lids, panels and hoods
- Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
- Mounted: from the rear
- Available colours: anodised black and natural tone
£5.15
plus sales tax
Added to your shopping cart
Designation
Pull Handle
Version 1
angled
Body material
aluminium
Body colour
natural
Body surface finish
anodised
A=Hole spacing
86
D1=Outside diameter
10
D=Fastening hole
M05
F=Load capacity (N)
500
L=Length
96
T=Thread depth
10
Assembly
from the rear
B
40
B1
10
H
45
PL 19" TECHNIK
TRUE
Pull handle cross section
round
Description
Material
Aluminium.
Version
Matt-finished, anodised black or natural tone.
