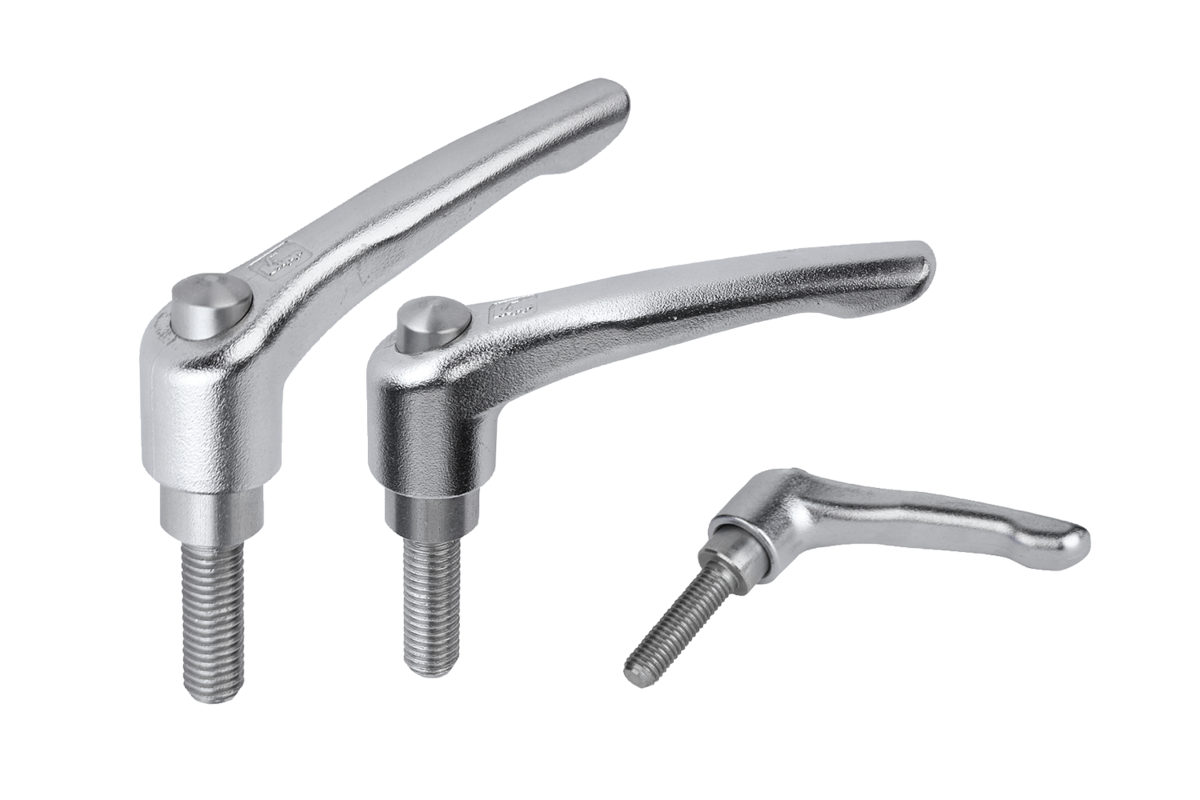

Material
Handle investment cast 1.4308.
Other steel parts 1.4305.
Version
Handle electropolished.
Steel parts bright.
Steel parts bright.
Show more
Show less
Description
Material
Handle investment cast 1.4308.
Other steel parts 1.4305.
Version
Handle electropolished.
Steel parts bright.
Steel parts bright.
Note
Where L ≥ 60 mm the thread length is always 60 mm.
On request
Other threads, screw lengths and special versions.
Dimension “H1” available in other lengths at extra charge.
Dimension “H1” available in other lengths at extra charge.
Drawing reference
1) flat point DIN EN ISO 4753
