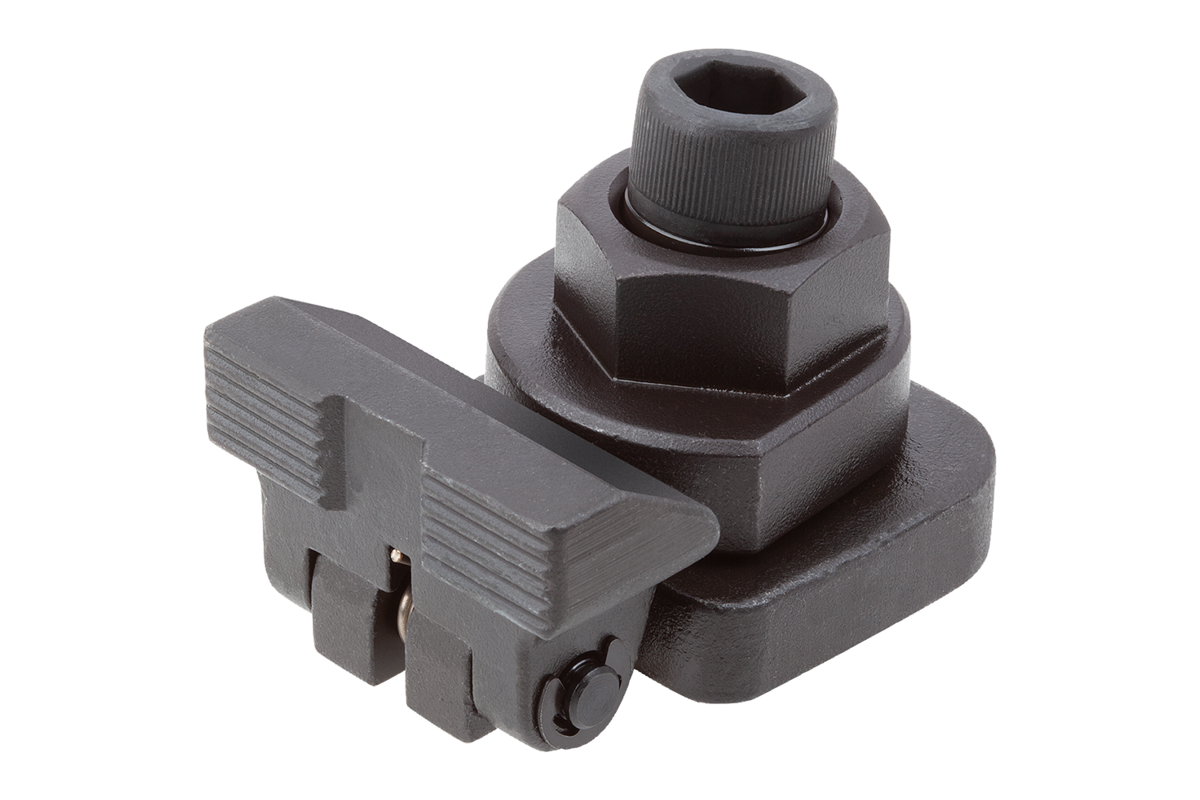

Side clamp with cam

Description

Material
Carbon steel.
Version
Black oxidised.

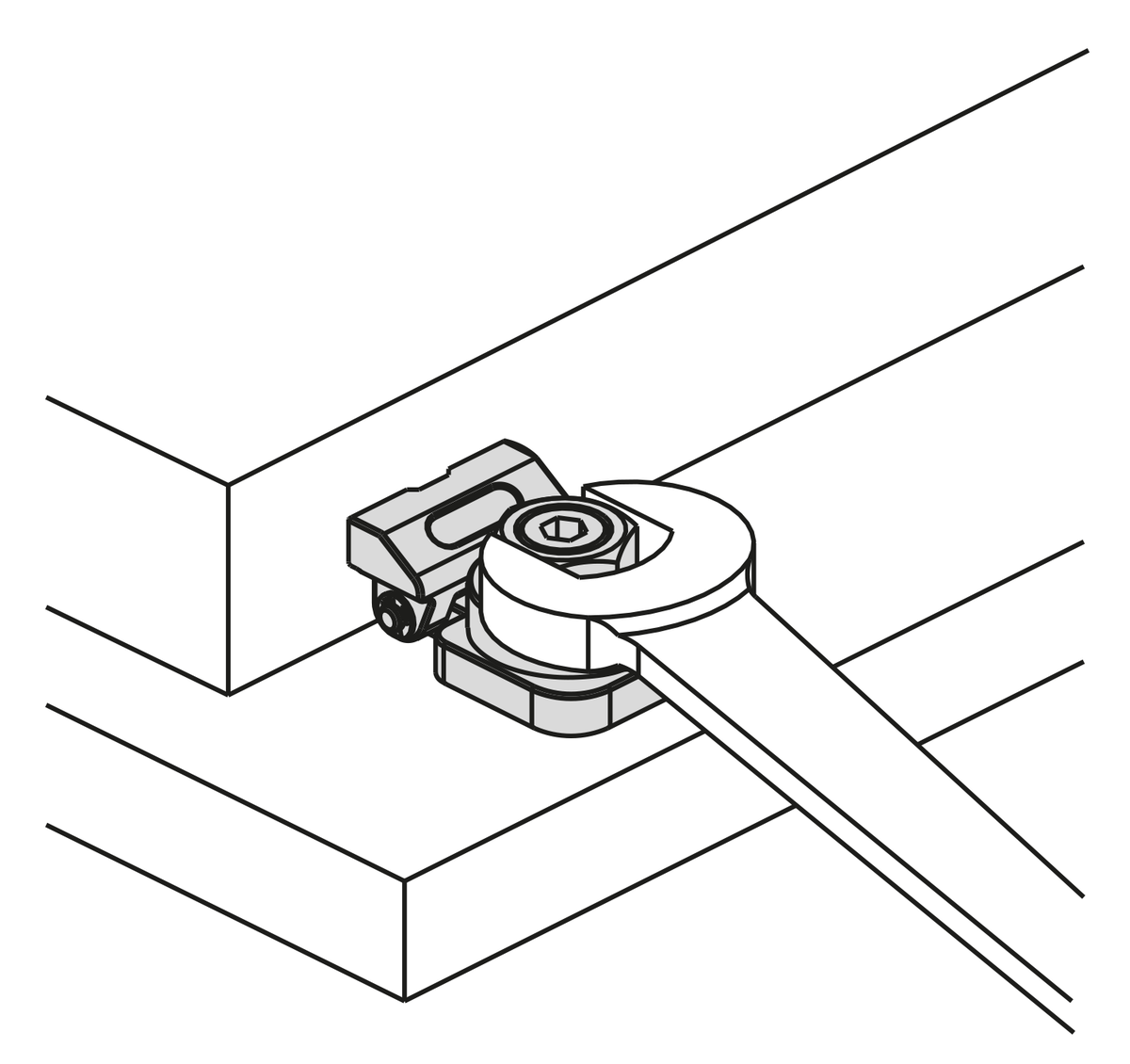

Assembly
1. Screw the locking screw into the collar bush, fixture clamp and clamping unit and screw onto the baseplate.
2. The workpiece is clamped by tightening the fixture clamp with a spanner.
Advantages
- Compact design
- Quick and easy clamping of components
- Pull-down effect

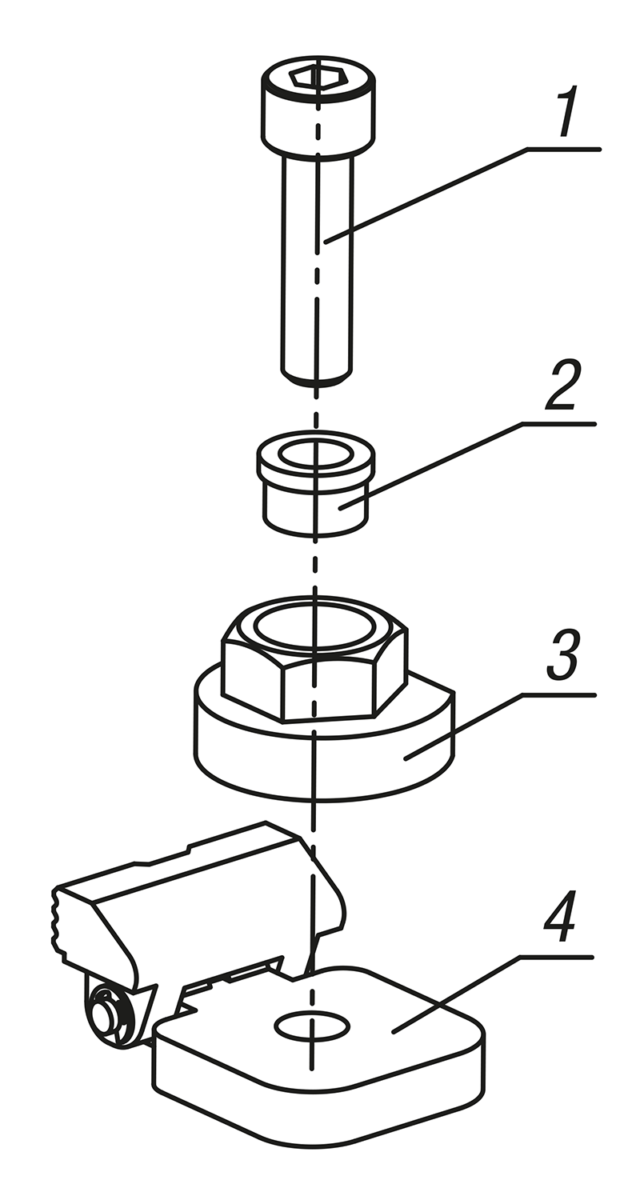

Drawing reference
1) Locking screw
2) Collar bush
3) Fixture clamp
4) Clamping unit
