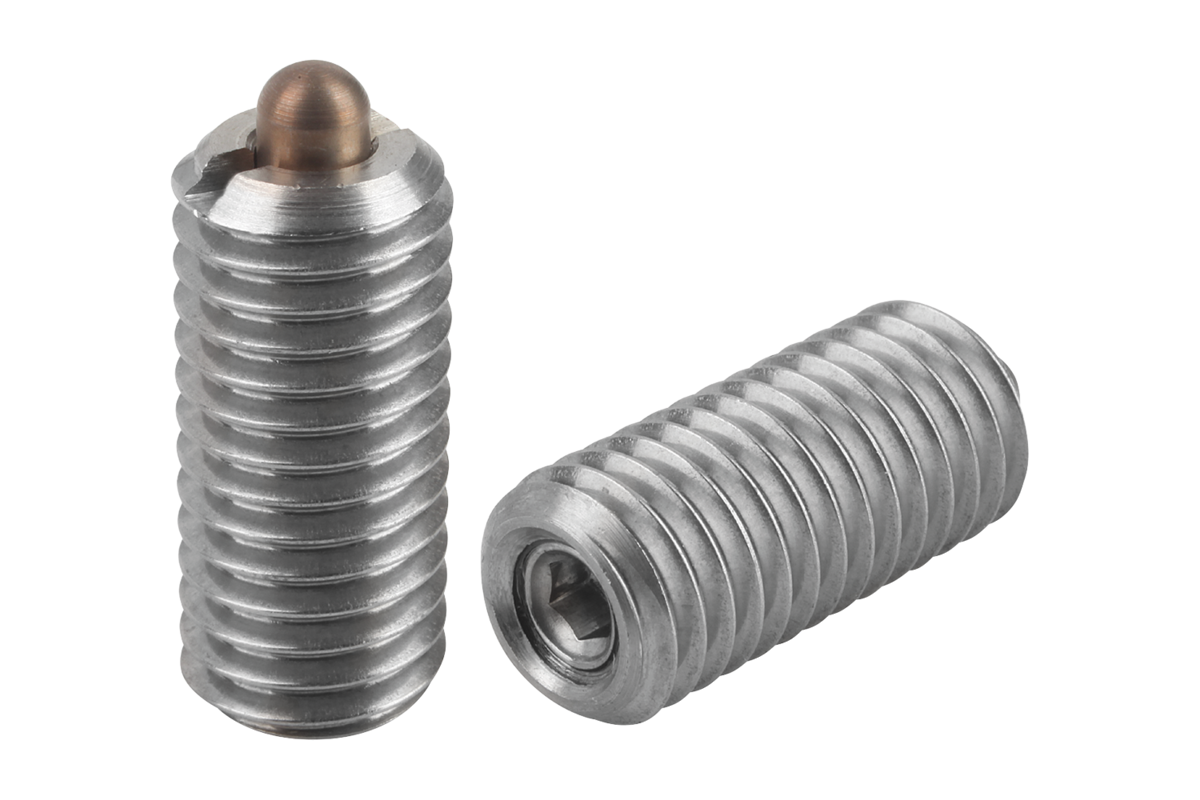

- Quick indexing, positioning and fixating of components
- Application sectors: machine and plant construction, trade, domestic
- Universally applicable and easy to mount
- Hardened thrust pin
- Stainless steel 1.4305, 1.4034, 1.4310
Description
Material
Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.
Version
Bright.
Thrust pin hardened.
Thrust pin hardened.
Drawing reference
1) grub screw glued in
