03056-01

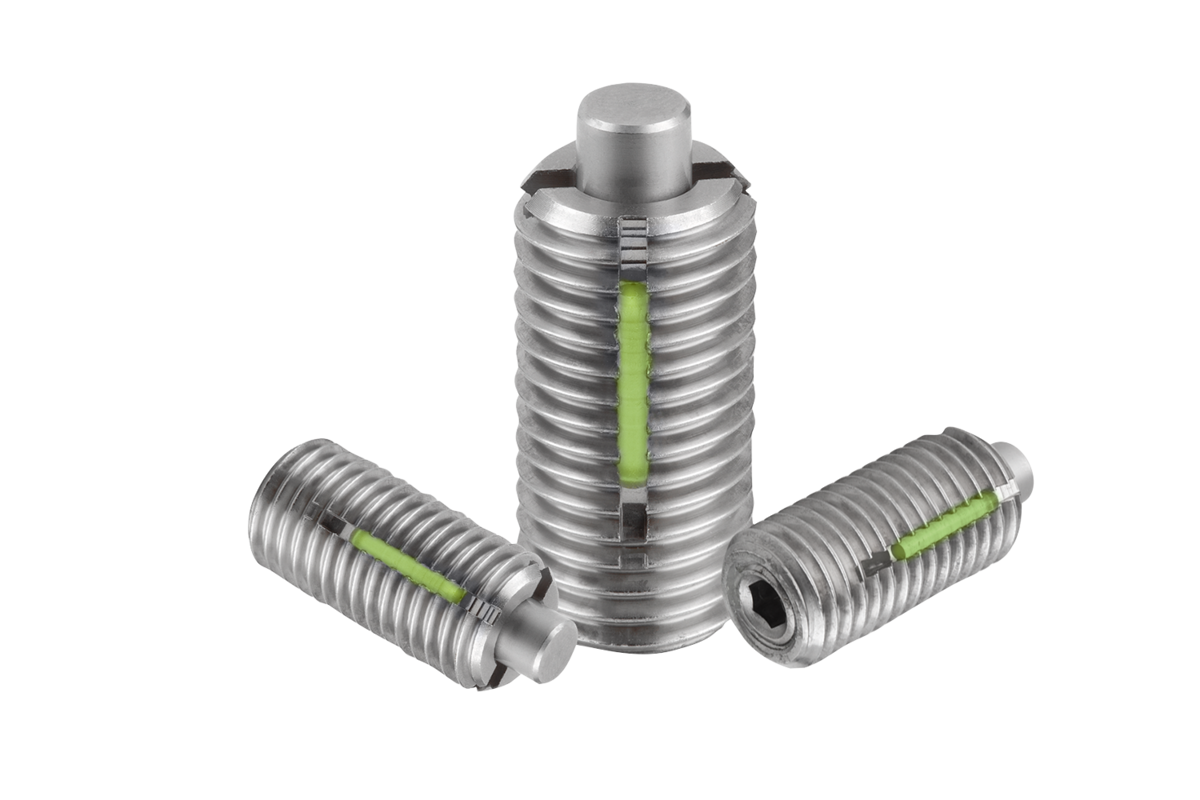

Spring plungers with hexagon socket and flattened thrust pin, stainless steel, LONG-LOK lock
-
SPRING PLUNGER STANDARD SPRING FORCE D=M05 L=18 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-05
- D=Thread
- M05
- L=Length
- 18
from £4.35plus sales taxplus shipping costsMore details -
SPRING PLUNGER STANDARD SPRING FORCE D=M06 L=20 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-06
- D=Thread
- M06
- L=Length
- 20
from £4.35plus sales taxplus shipping costsMore details -
SPRING PLUNGER STANDARD SPRING FORCE D=M08 L=22 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-08
- D=Thread
- M08
- L=Length
- 22
from £4.85plus sales taxplus shipping costsMore details -
SPRING PLUNGER STANDARD SPRING FORCE D=M10 L=22 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-10
- D=Thread
- M10
- L=Length
- 22
from £5.63plus sales taxplus shipping costsMore details -
SPRING PLUNGER STANDARD SPRING FORCE D=M12 L=28 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-12
- D=Thread
- M12
- L=Length
- 28
from £8.14plus sales taxplus shipping costsMore details -
SPRING PLUNGER STANDARD SPRING FORCE D=M16 L=32 STAINLESS STEEL, FLAT, LONG-LOK, COMP:PIN STAINLESS STEELItem No. 03056-01-16
- D=Thread
- M16
- L=Length
- 32
from £12.76plus sales taxplus shipping costsMore details
Description
Material
Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.
LONG-LOK thread lock Nylon.
Thrust pin 1.4034.
Spring 1.4310.
LONG-LOK thread lock Nylon.
Version
Bright.
Thrust pin hardened.
Thrust pin hardened.
Note
These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.
The thrust pin is actuated in the axial direction.
Drawing reference
L2 = ca. two full threads
1) grub screw glued-in
1) grub screw glued-in
