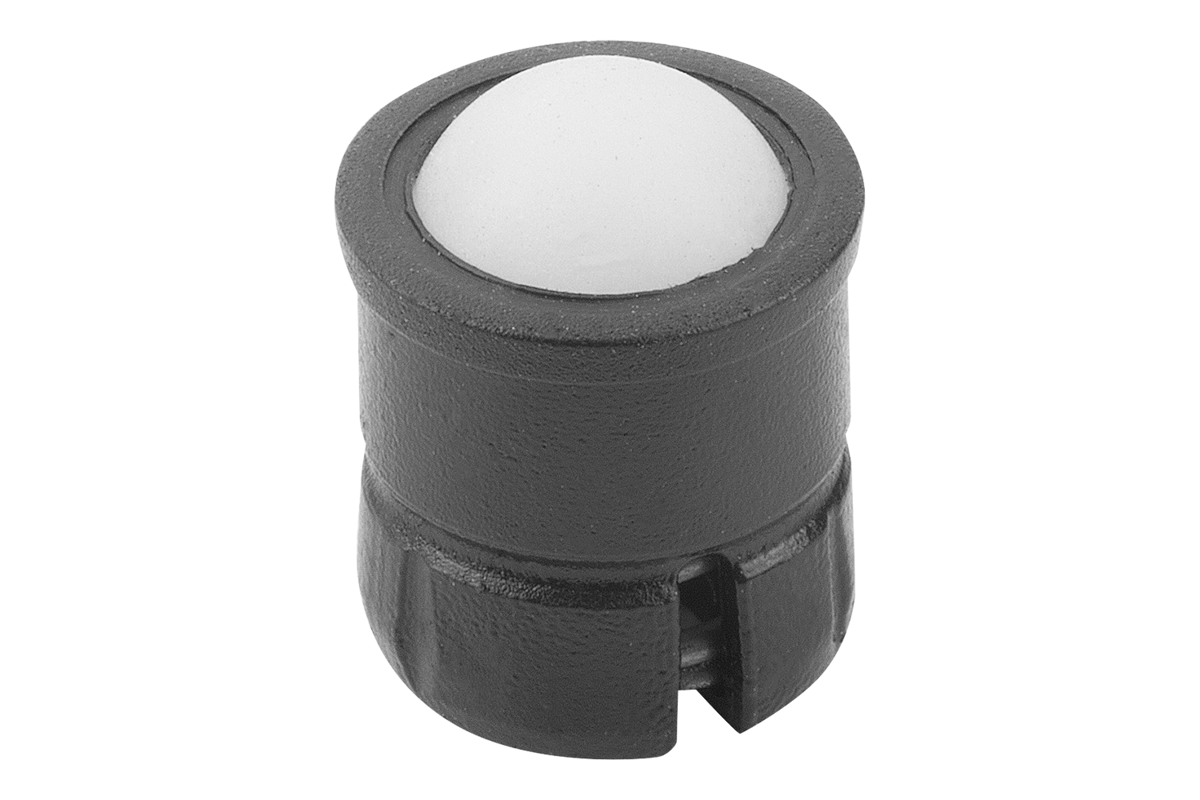

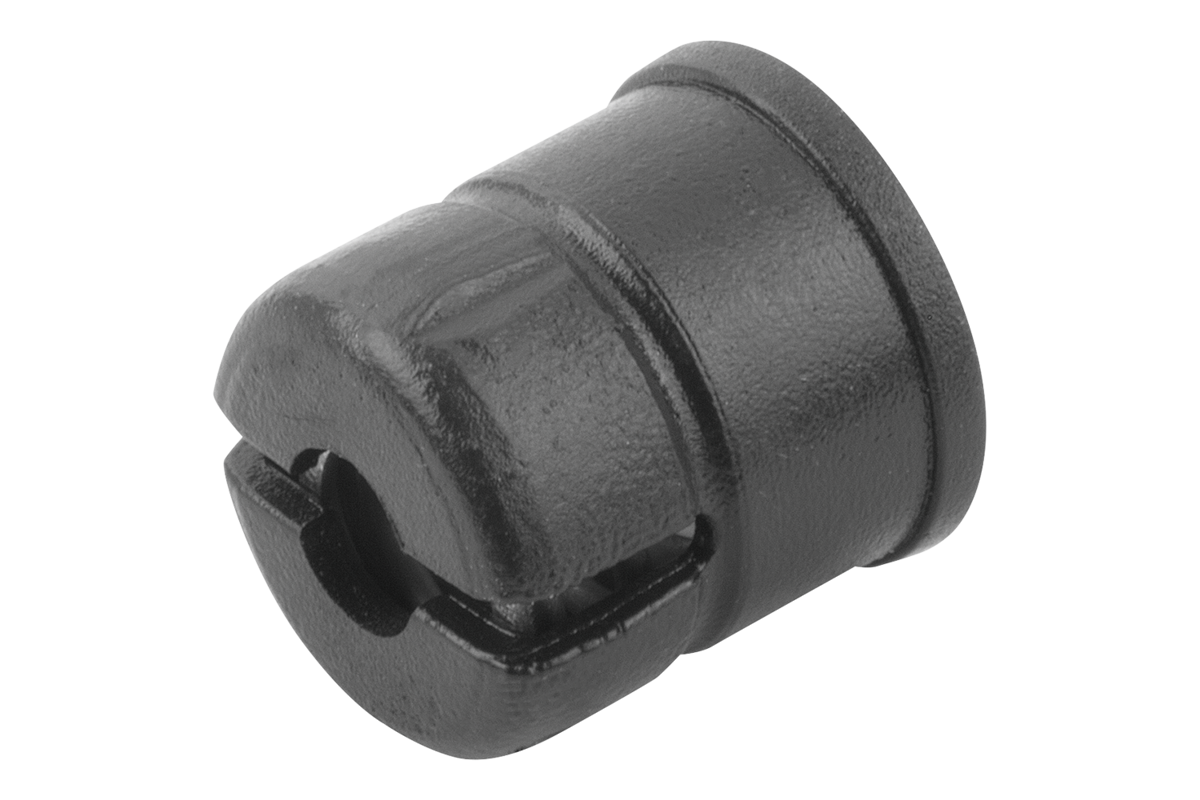

Spring Plunger
smooth version
plastic
- Quick indexing, positioning and fixating of components
- Application sectors: machine and plant construction, trade, domestic
- Universally applicable and easy to mount
- Simple assembly
- Ideal for safe overhead installation
Sales unit
£0.78 / Piece
plus sales tax
Added to your shopping cart
Designation
Spring Plunger
Version 1
smooth version
Body material
plastic
Component material
POM
D=Outside diameter
6
F1=Spring force initial N ca.
6,2
F2=Spring force final N ca.
12,6
F=Spring force
standard
H=Stroke
1,6
L=Length
7
D1
5
D2
6,5
L1
1
Description
Material
Sleeve thermoplastic.
Spring stainless steel.
Ball stainless steel or POM.
Spring stainless steel.
Ball stainless steel or POM.
Version
Sleeve black.
Ball hardened, bright.
Ball hardened, bright.
Note
The self-locking function of the spring plunger enables simple assembly and secure overhead installation.
