Forms
2 Hits

Description

Material
Aluminium 3.2163.
Version
Black.
Note

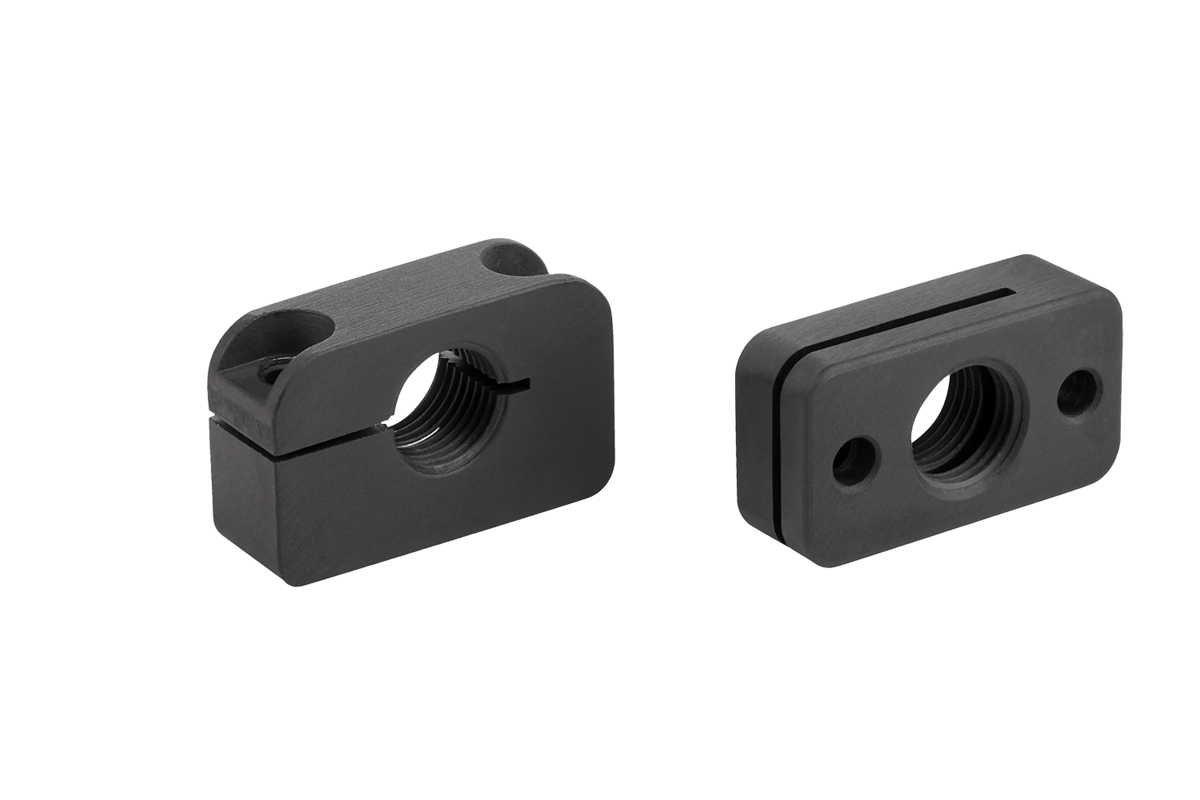

These mounting brackets are an assembly aid for cam-action and other indexing plungers and expand the application field. They can also be used with other elements that have a suitable thread.
Fastened using DIN 912 / ISO 4762 cap screws.
Drawing reference
Form A: fastening holes parallel to thread
Form B: fastening holes perpendicular to thread
