01267

Tombstone, grey cast iron, double-sided, for interchangeable subplates

Description

Material
GJL 300.
Version
Support and mounting surfaces precision machined
Note

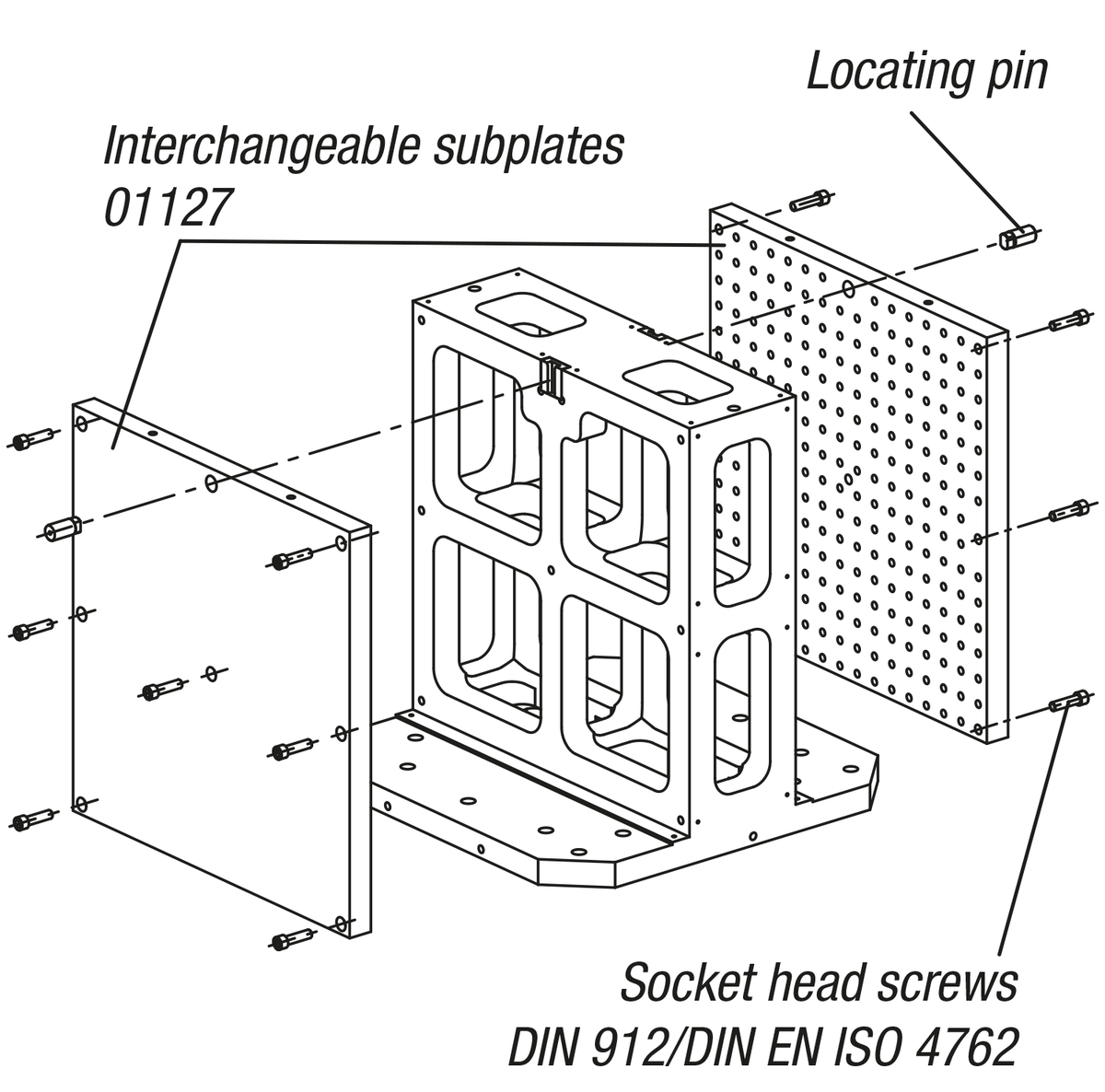

Interchangeable subplates can be positioned and mounted on both sides of the tombstone. This means that clamping fixtures can be replaced efficiently. The tombstones conform to machine tables for machine tools acc. to DIN 55201 and JIS6337-1980. Please order locating pins for positioning subplates on machine tables acc. to DIN 55201 separately.
Ring bolts for hoisting are supplied, as well as 2 positioning pins for positioning the interchangeable subplates.
Drawing reference
1) hole for DIN 912 cap screw
