01247-05

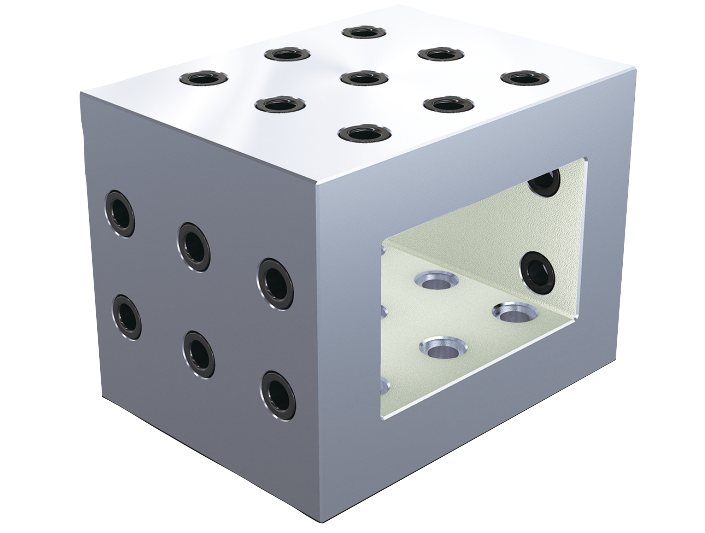

Tooling blocks, grey cast iron with grid holes
-
BRACKET WITH GRID HOLES FORM:B, L=200, B=150, H=150, D=12, D1=M12 GJL300Item No. 01247-05-212201515from £487.09plus sales taxplus shipping costsMore details
-
BRACKET WITH GRID HOLES FORM:B, L=250, B=150, H=200, D=12, D1=M12 GJL300Item No. 01247-05-212251520from £633.22plus sales taxplus shipping costsMore details
-
BRACKET WITH GRID HOLES FORM:B, L=200, B=150, H=150, D=16, D1=M16 GJL300Item No. 01247-05-216201515from £535.80plus sales taxplus shipping costsMore details
-
BRACKET WITH GRID HOLES FORM:B, L=250, B=150, H=200, D=16, D1=M16 GJL300Item No. 01247-05-216251520from £681.93plus sales taxplus shipping costsMore details
Description
Material
GJL 300.
Version
Support and mounting surfaces ground
Note
Grid spacing 50 ±0.02 mm.
Tooling blocks with grid holes are used for constructing modular fixtures. They can be positioned and mounted precisely on grid systems. This means that the grid hole spacing is maintained on the raised clamping face.
Tooling blocks can also be used as a base element for clamping smaller workpieces.
Size M12 tooling blocks are fastened using shoulder screws 07533-112065. Size M16 tooling blocks are fastened using shoulder screws 07533-116065.
Please order protection plugs to plug unused grid holes separately.
Tooling blocks with grid holes are used for constructing modular fixtures. They can be positioned and mounted precisely on grid systems. This means that the grid hole spacing is maintained on the raised clamping face.
Tooling blocks can also be used as a base element for clamping smaller workpieces.
Size M12 tooling blocks are fastened using shoulder screws 07533-112065. Size M16 tooling blocks are fastened using shoulder screws 07533-116065.
Please order protection plugs to plug unused grid holes separately.
Drawing reference
1) grid hole
2) hole for shoulder screw
2) hole for shoulder screw
