01247-05

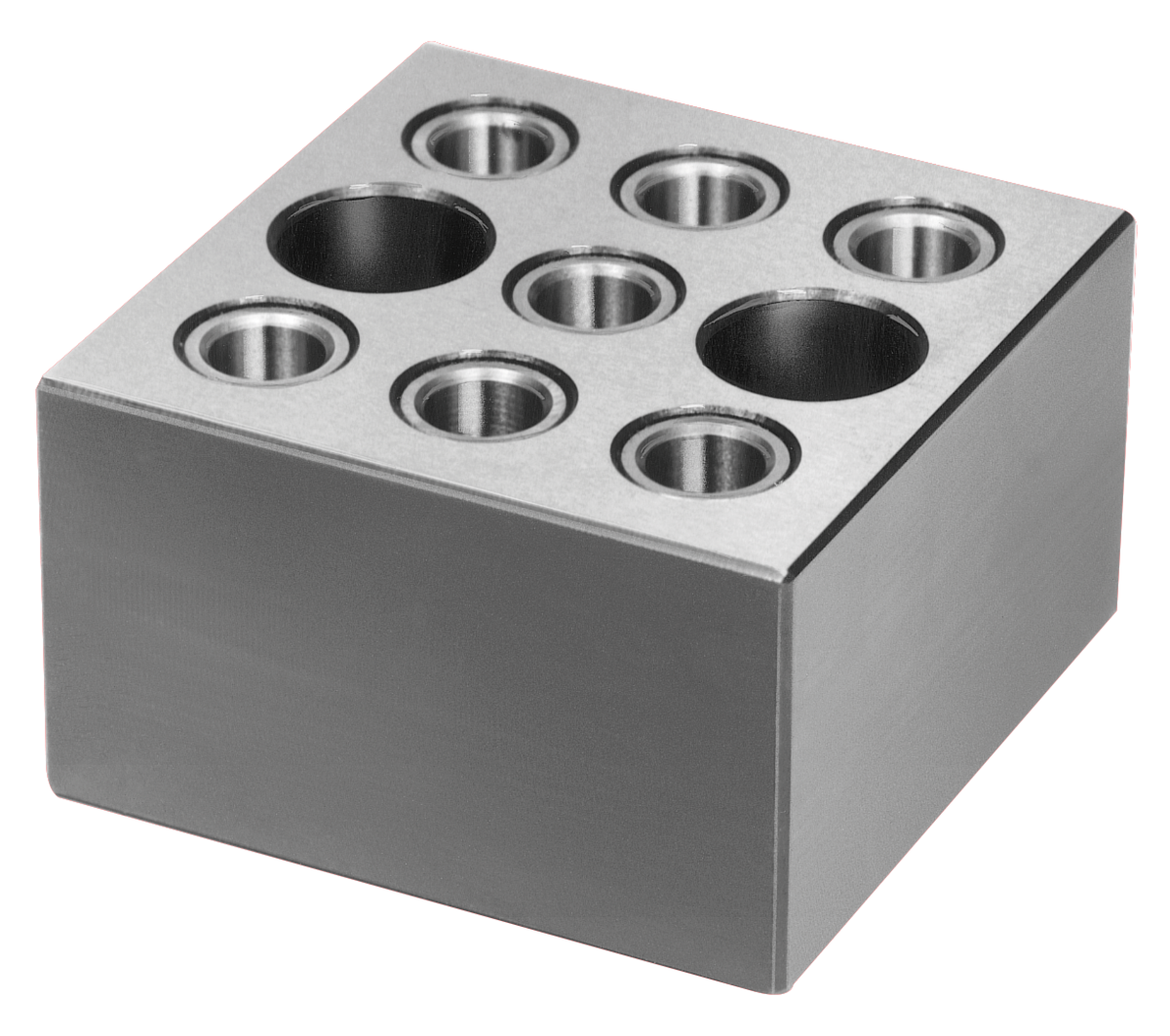

Fastening blocks Form M

Description

Material
Carbon steel.
Version
Black oxidised.
Contact faces ground.
Note

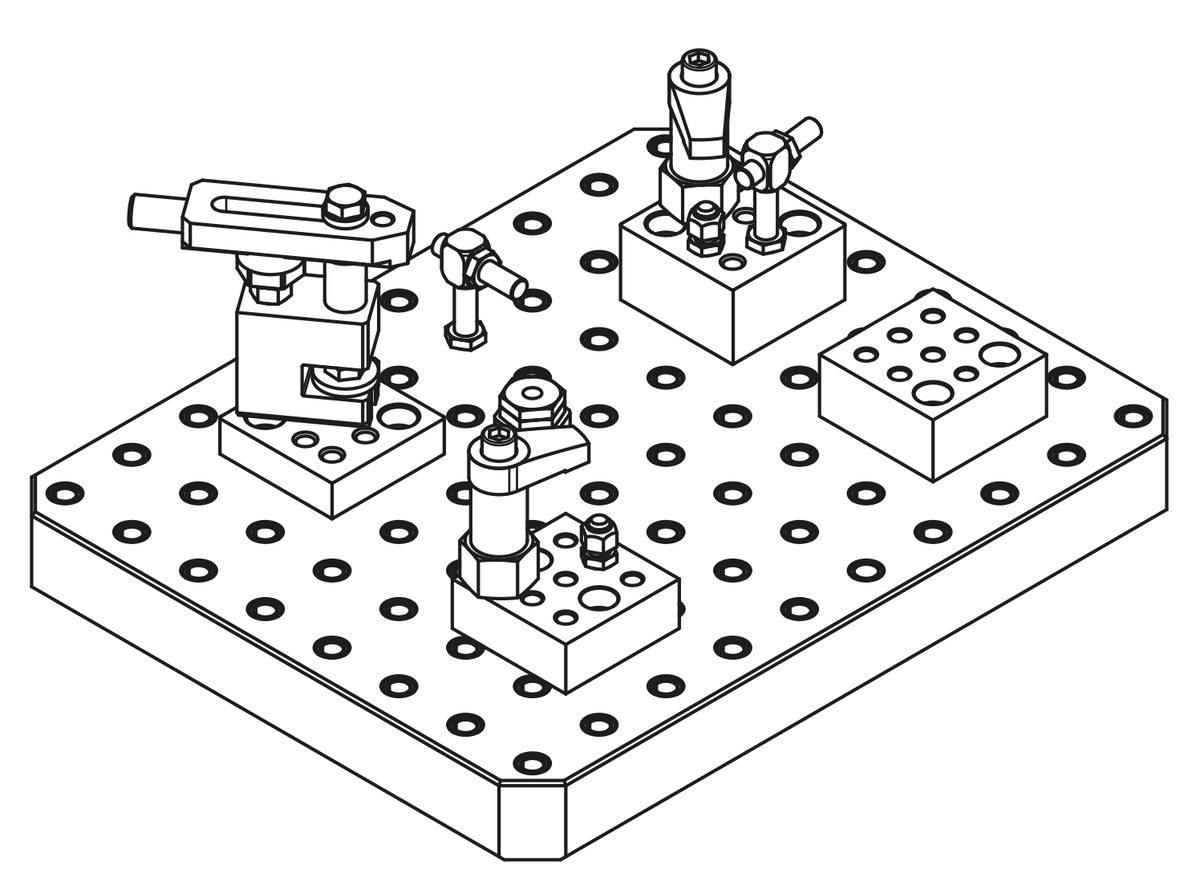

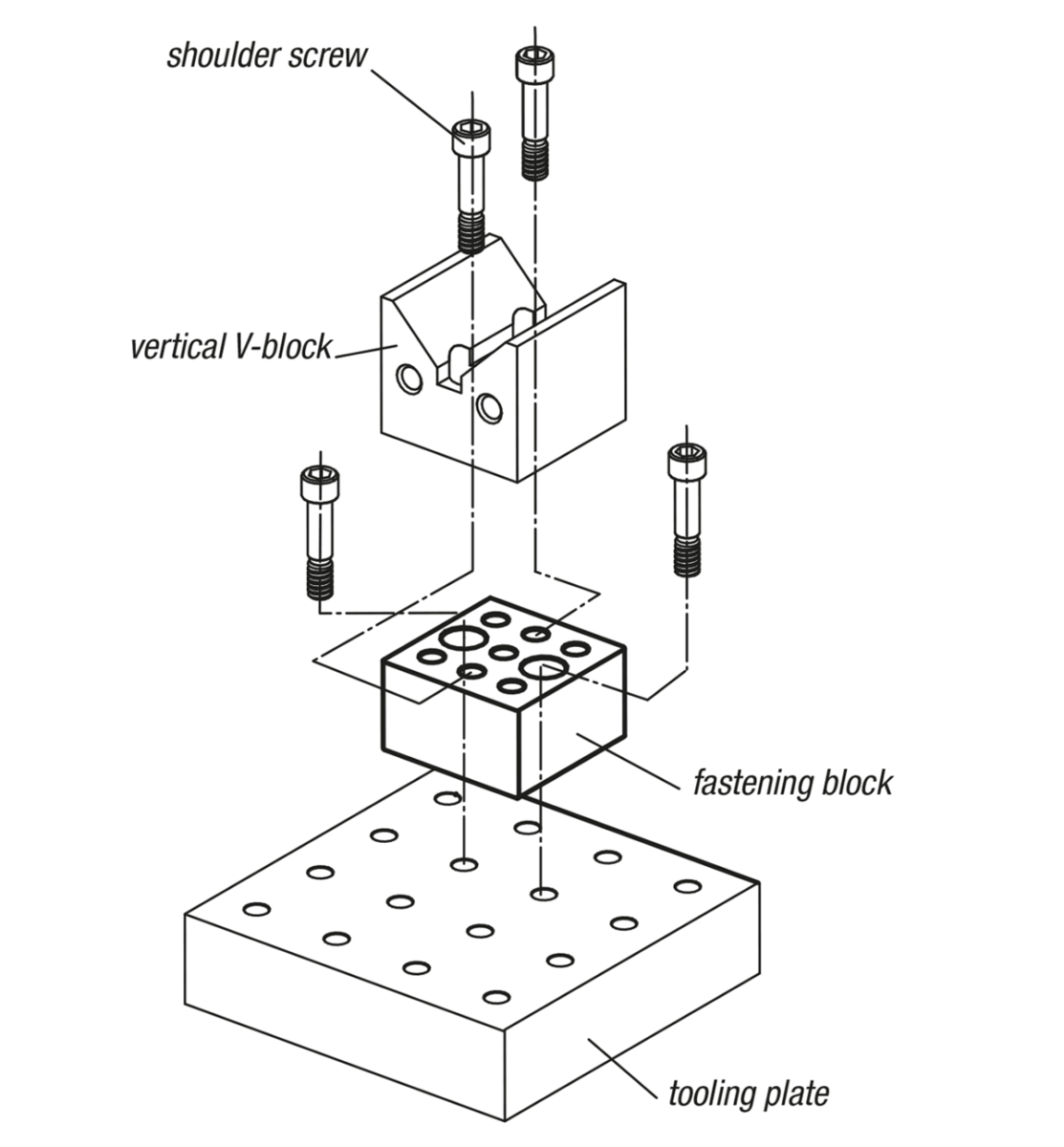

Fastening blocks are used as riser elements in all system elements that have no movable support and contact faces. These include e.g. locating supports 02394, vertical prisms 02388-05-600. They also offer the possibility to position and secure elements within a 50 ±0.01 mm grid (see application example).
