{"product":{"productId":"agid.24806","price":36.1,"name":"EMERGENCY STOP BUTTON SURFACE-MOUNTEDVERSION, SELF-MONITORING=YES, SPRINGCLAMP, NUMBER OF NC CONTACTS=2, NUMBEROF NO CONTACTS=1, PLASTIC"},"currency":"GBP"}

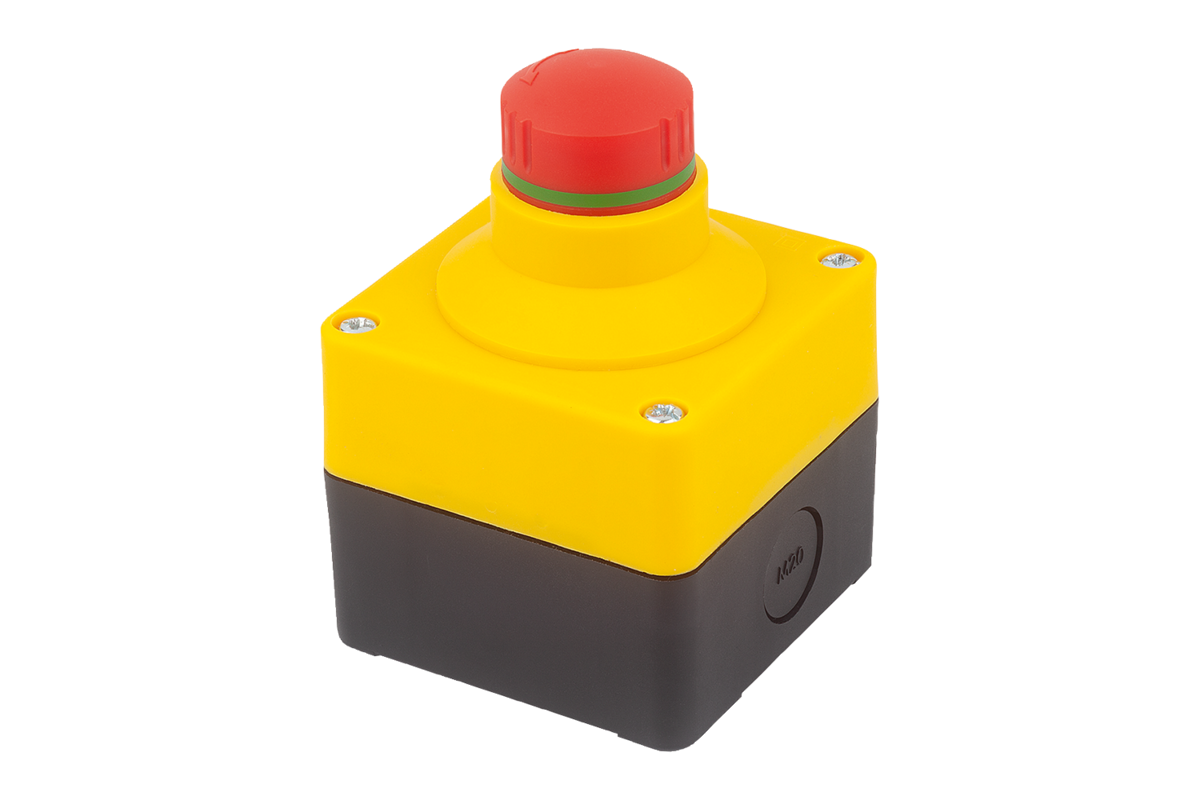

Emergency stop button
Surface-mounted version
plastic
- Robust design
- High safety rating
- Position indication by coloured marking
- Self-monitoring
- Complete with contactor
Sales unit
£36.10
plus sales tax
Registered customers are offered live availability of the item after logging in to the website. Please log in or register to see the live availability or request a quotation.
Added to your shopping cart
Item
Emergency stop button
Version 1
Surface-mounted version
Main
material
plastic
Anti-block collar
yes
Bounce time
ms
<10
Cable entry
M20 breakaway
Connection
cross-section
max. (mm²)
0,75-2,5
Connection
type
spring clamp
Contact current
min.
mA
5
Contact resistance
m Ohm
<100
Contact voltage
min.
V
24
Illuminable
no
Installed Ø
22,3
No. of NC contacts
2
No. of NO contacts
1
Protection class
II Protective insulation
Release
right/left rotation
RoHS
true
Safety rating
IP65/IP67
Self-monitoring
yes
Switch position indicator
yes
Tamper-proof
yes
Tightening torque
Mounting nut
Nm
2,5
UNSPSC Code
31161541
Wire strip length
mm
8-10
Description
Material
Plastic
Contact terminals AgNi.
Contact terminals AgNi.
Version
Push button red
Housing black/yellow.
Housing black/yellow.
Note
Emergency stop buttons are used to manually switch off machines and systems quickly in emergencies. The push button engages when depressed and can be unlocked again by twisting it to the right or left. The red button is located on a yellow background. This ensures good identification.
Certificates / Standards met:
CE, TÜV Süd, CCC.
EN 60947-5-1, EN 60947-5-5, EN ISO 13850.
Certificates / Standards met:
CE, TÜV Süd, CCC.
EN 60947-5-1, EN 60947-5-5, EN ISO 13850.
Technical Data
Mounting position: arbitrary.
Mechanical service life: 50,000 switching cycles.
Electrical service life: 50,000 switching cycles at nominal load.
NC contact forced opening: acc. to EN 60947-5-1, App K.
Rated insulation voltage Ui: 250 V.
Permanent thermal current: 10A.
Utilisation category acc. to IEC/EN60947-5-1:
AC15: 250 V / 3 A.
DC13: 24 V / 2 A.
Mechanical service life: 50,000 switching cycles.
Electrical service life: 50,000 switching cycles at nominal load.
NC contact forced opening: acc. to EN 60947-5-1, App K.
Rated insulation voltage Ui: 250 V.
Permanent thermal current: 10A.
Utilisation category acc. to IEC/EN60947-5-1:
AC15: 250 V / 3 A.
DC13: 24 V / 2 A.
Temperature range
Storage temperature: -50 °C to +85 °C.
Operating temperature: -25°C to +55°C.
Operating temperature: -25°C to +55°C.
Advantages

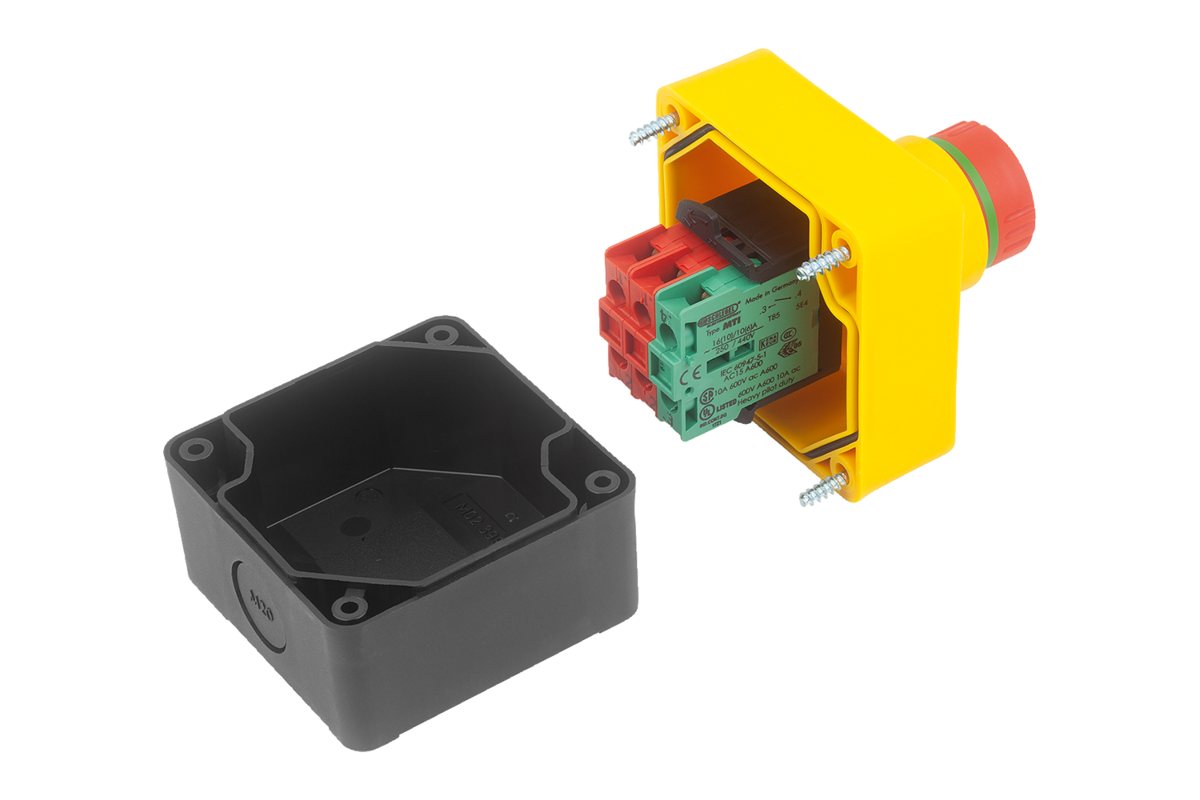

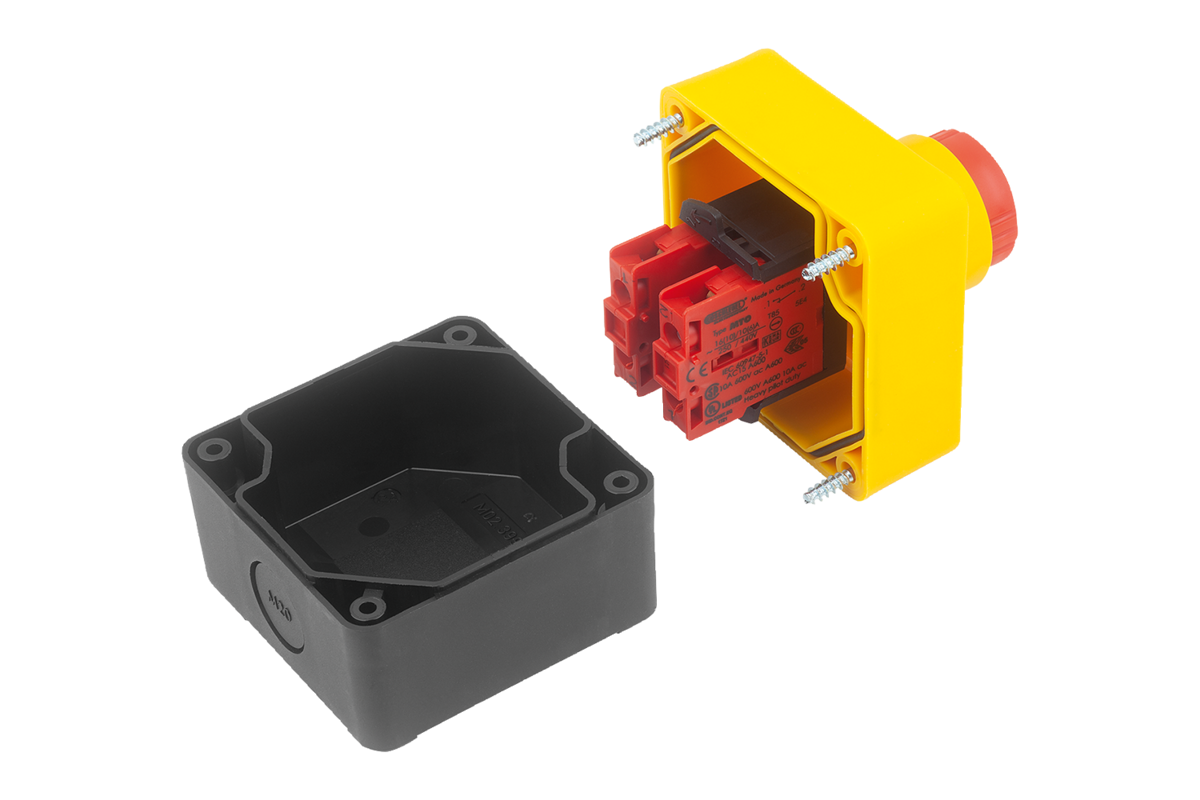

The safety contact ( design with NO contact) constantly monitors the orderly connection between the emergency stop button and the contact element. If the emergency stop button is separated from the contact element due to negligent installation or mechanical damage, the safety contact breaks immediately and the machine is stopped.
