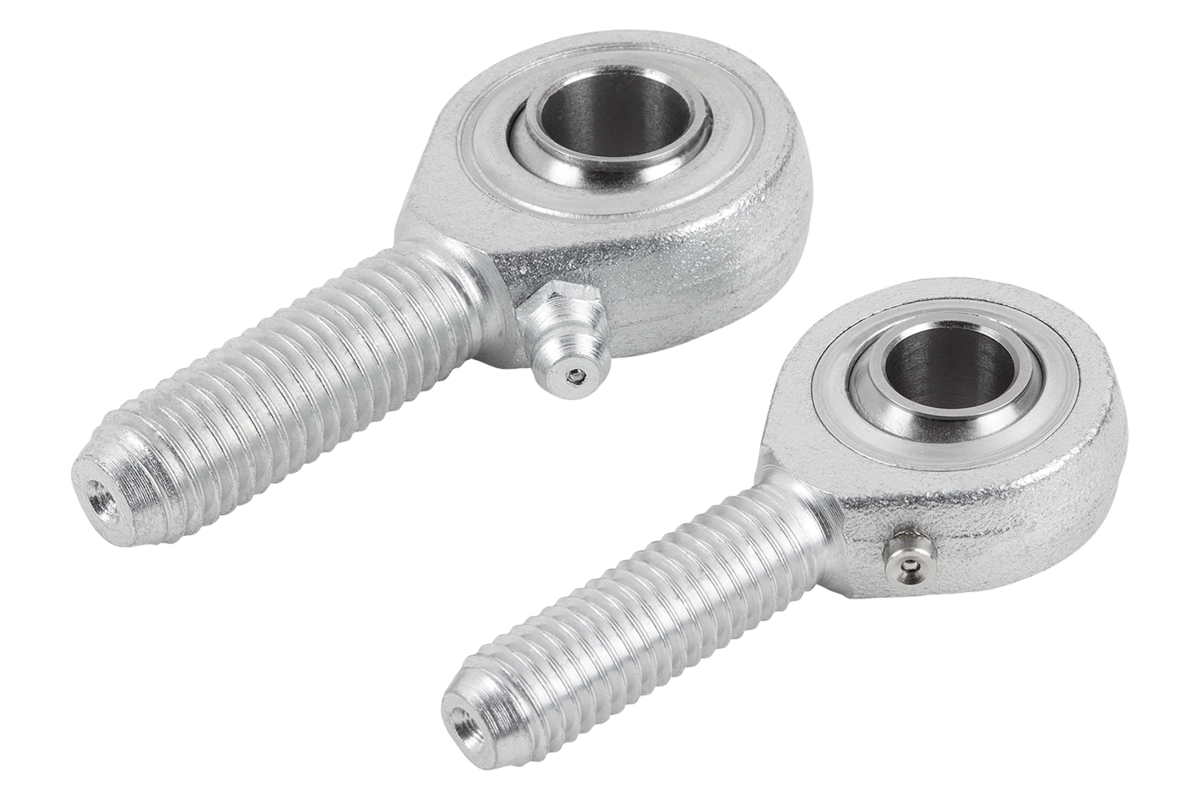

Rod ends with ball bearing external thread

  • For transmitting movement processes
  • Hardened and permanently lubricated ball bearing
  • Bearing play 15–40 µm
  • Cover washers for sealing
  • Version: right or left-hand thread
Special features:

from £25.83

plus sales tax
14 results found


Casing drop-forged steel, tempered.
Electro zinc-plated.
Bearing play 15 - 40 µm.
The hardened ball bearing is long-term greased and sealed with cover washers. The connection dimensions comply with DIN 648 series KA.
Rod ends are primarily used where movement processes are transmitted and there is no exact alignment.
Up to D = 10 the rod ends have a DIN 3405/A flush type grease nipple.
From D = 12 they have a DIN 71412/A conical head type grease nipple.
