27879-01

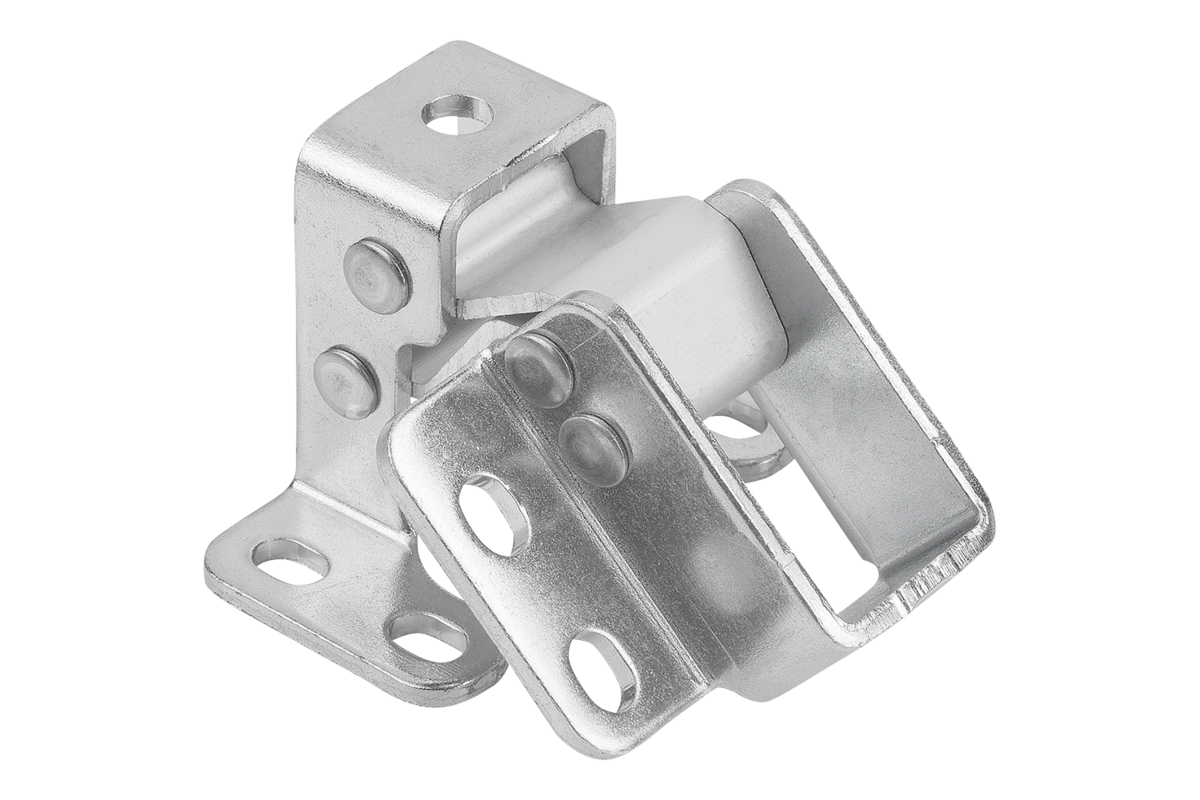

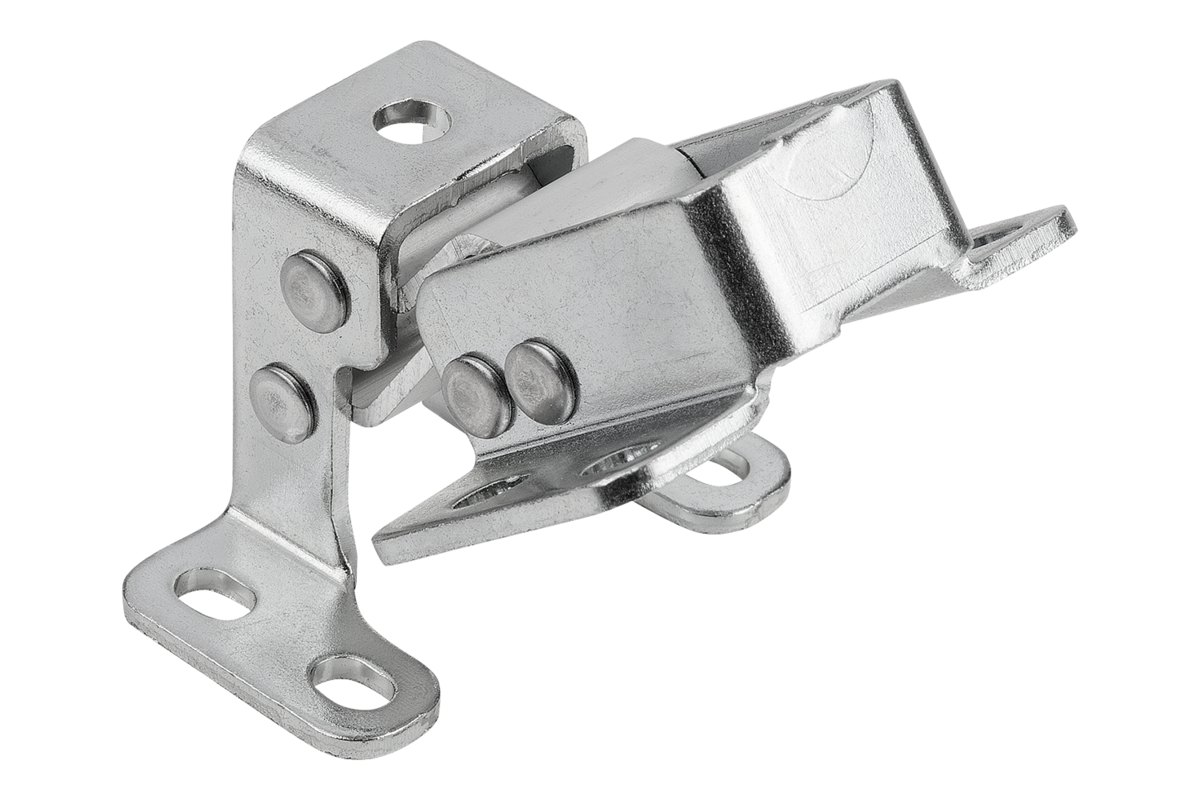

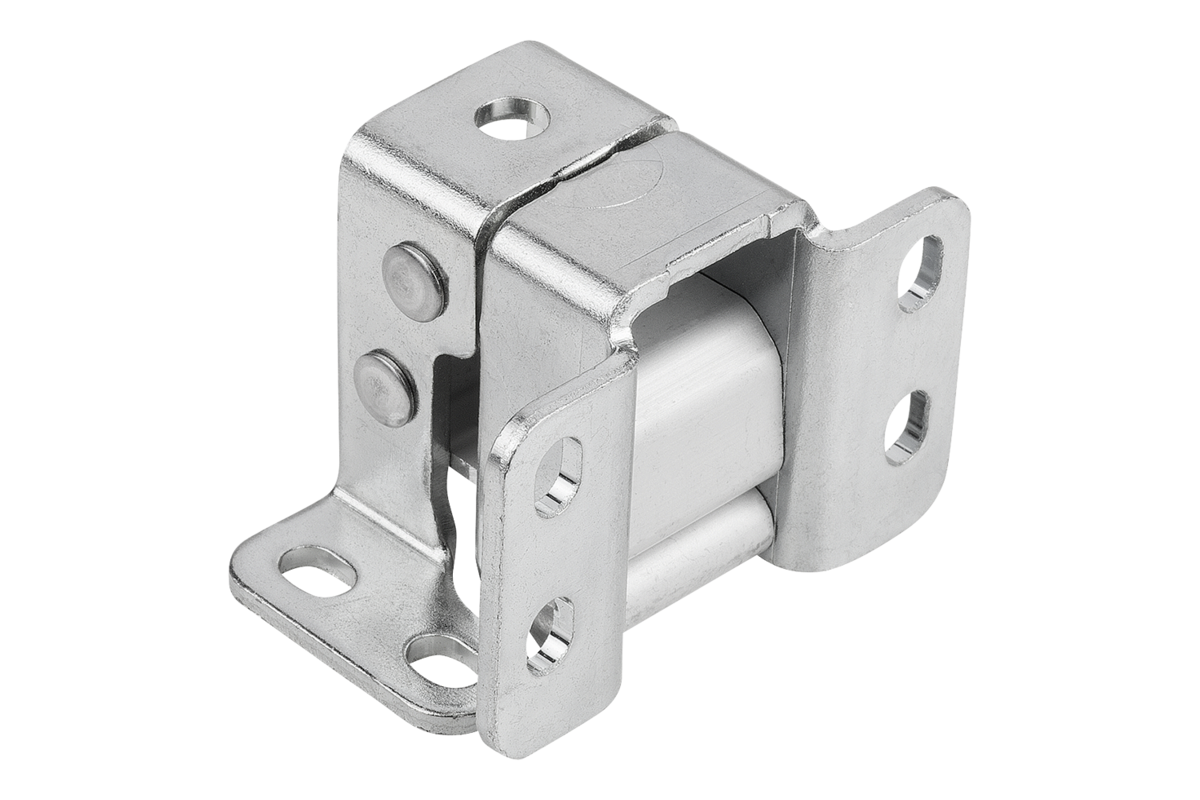

Hinges steel or stainless steel internal, opening angle 125°

  • Resistant to bending and torsion
  • Can be mounted on right or left side
  • For horizontal or vertical applications
Special features:

from £16.68

plus sales tax

Description

Material
Steel, axis and connecting elements anodised aluminium.

Stainless steel 1.4404, axis and connecting elements anodised aluminium.
Version
Electro zinc-plated.
Bright.
Note
The hinges are resistant to bending and torsion.

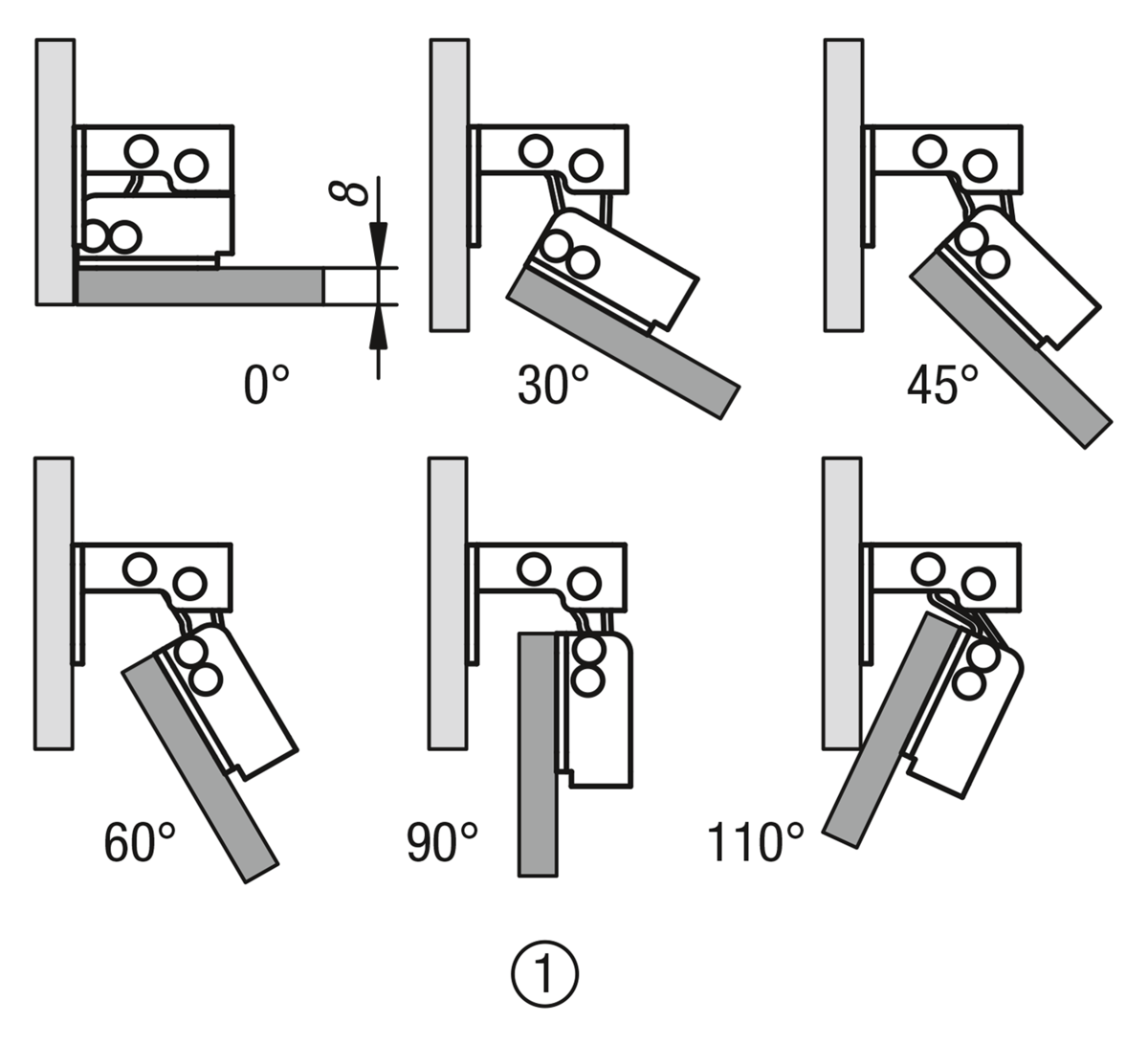

The opening angle depends on the door thickness:
- max. 2 mm material thickness: opening angle 125°
- max. 8 mm material thickness: opening angle 110°
- max. 13 mm material thickness: opening angle 100°
Assembly
- For recessed or surface mounting.
- Can be mounted on right or left side.
- For horizontal or vertical applications.

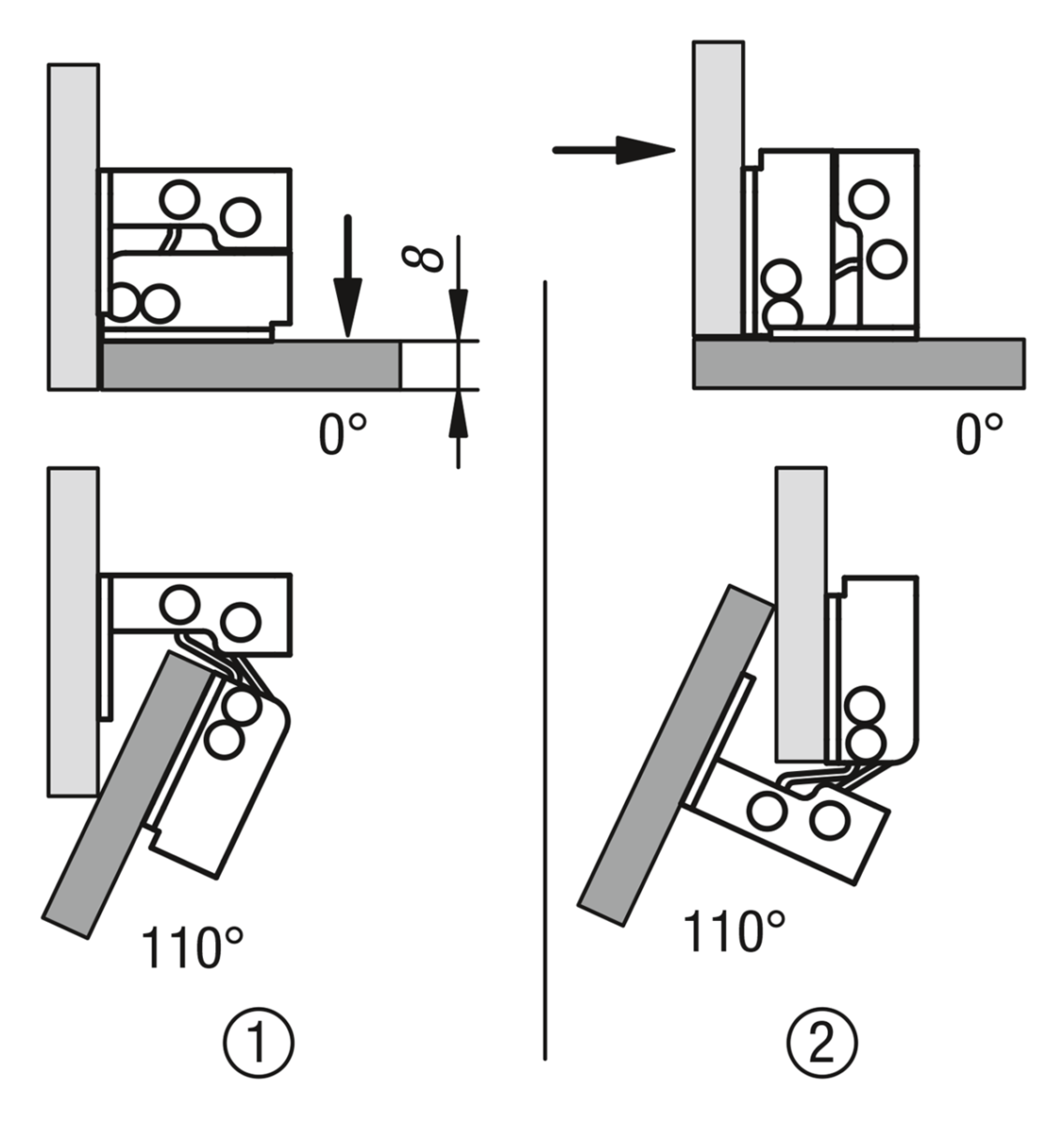

Drawing reference
1) recessed mounting
2) surface mounting
