27856

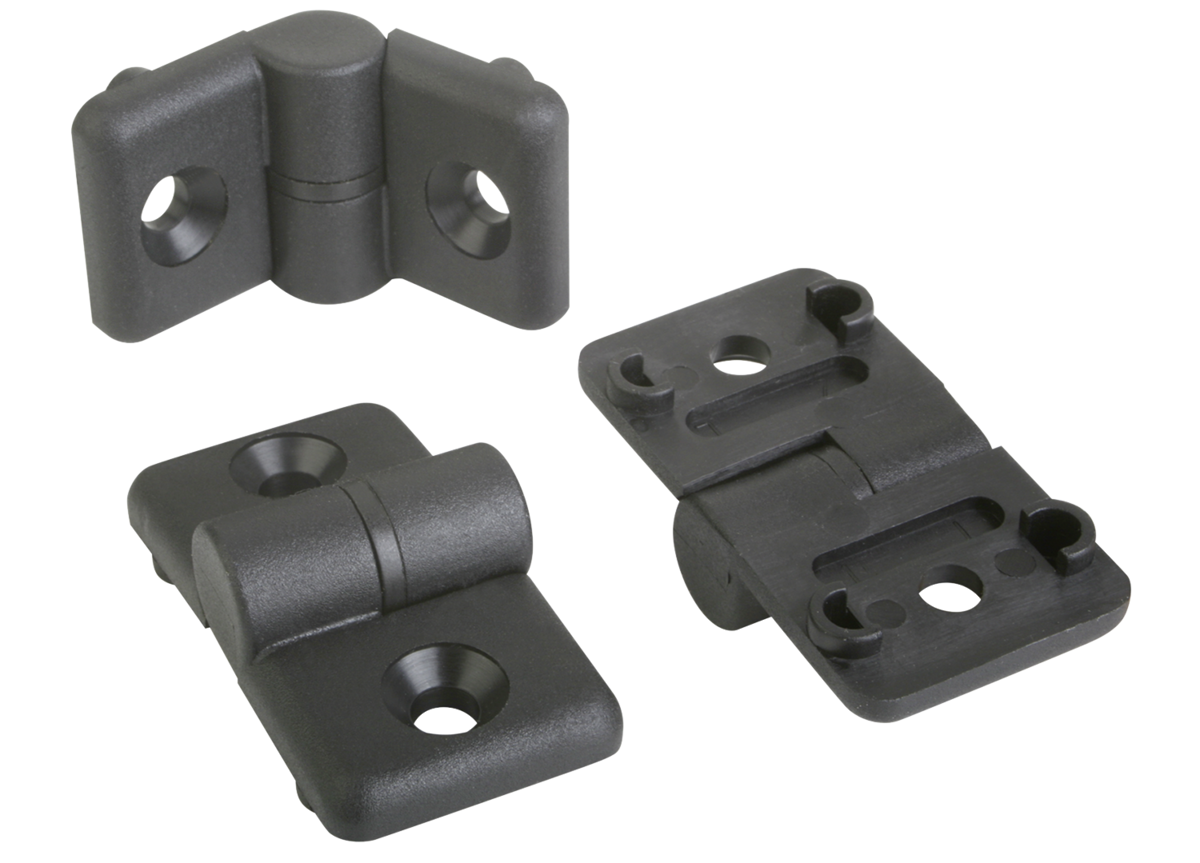

Hinges plastic, lift-off, with guide tabs

  • Connect two fixed components flexibly to each other
  • Application sectors: machine construction, furniture construction, doors, hatches, hoods
  • Can be screwed onto all panel elements
  • Axis, stainless steel
Special features:

from £3.90

plus sales tax

Description

Material
Fibreglass reinforced thermoplastic.
Hinge pin stainless steel.
Washer thermoplastic.
Version
Hinge and washer black. Pin bright.
Note
The hinges can be located in an 8 mm slot using the guide tabs.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
