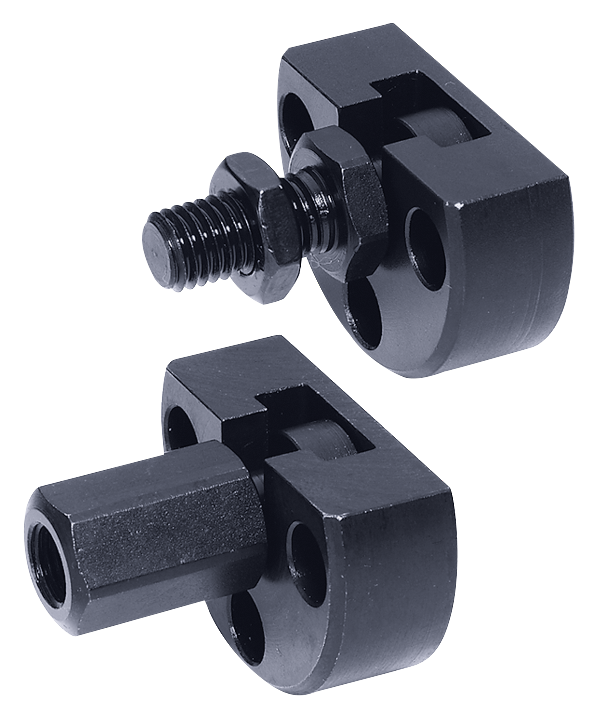

Quick-fit couplings with radial offset compensation and mounting flange

  • Simple and robust
  • Versatile use
  • Space-saving
  • Compatible with all common pneumatic and hydraulic cylinders
  • Versions: male or female thread
Special features:

from £26.19

plus sales tax
20 results found


Coupling part and steel flange.
Nut (DIN 439), grade 8.8.
Coupling part and flange tempered and phosphated.
Nut black oxidised.

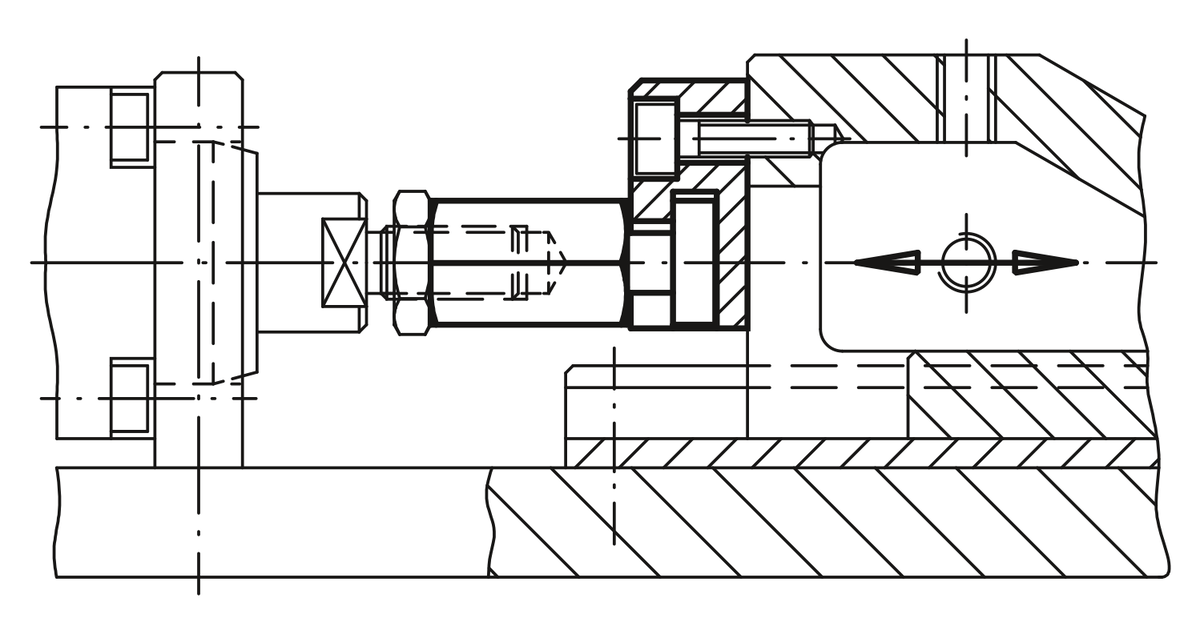

Space saving quick-fit couplings with radial offset compensation suitable for multiple applications, e.g. as a link between a piston rod and a linear-movement unit. Assembly and disassembly of this simple, solid and two-part coupling is with a T-slot, a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.

The quick-fit coupling does not transmit any torque.
