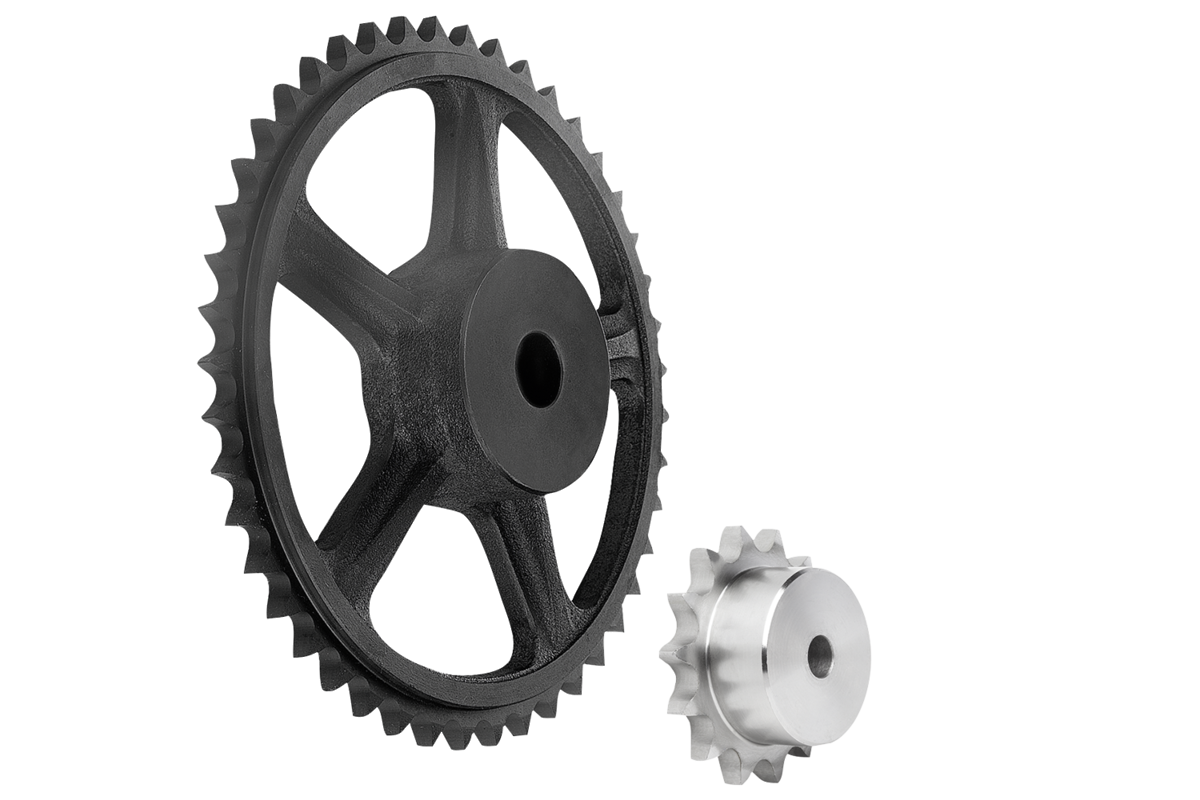

Sprockets single 5/8“ x 3/8“ DIN ISO 606

  • Suitable for roller chains acc. to DIN ISO 606
  • Pre-drilled
  • With hub on one side
Special features:

from £1.83

plus sales tax
  • 1(current)
  • 2
36 results found
  • 1(current)
  • 2

Description

Material
Steel C45.
Grey cast iron GG22 from 38 teeth.
Version
Bright, not hardened.
Note
Sprockets with hub one side for DIN ISO 606 roller chains.
The sprockets have a centre bore or are pre-drilled (this can vary due to production methods). For this reason, the dimension D3 max. given in the table is the maximum diameter of the bore that the sprockets are supplied with. This pilot hole/centre bore can be customised with a reamed hole, reamed hole with keyway or a tapped hole by the customer. Alternatively, bushes can be fitted by the customer to reduce the diameter.
