22250

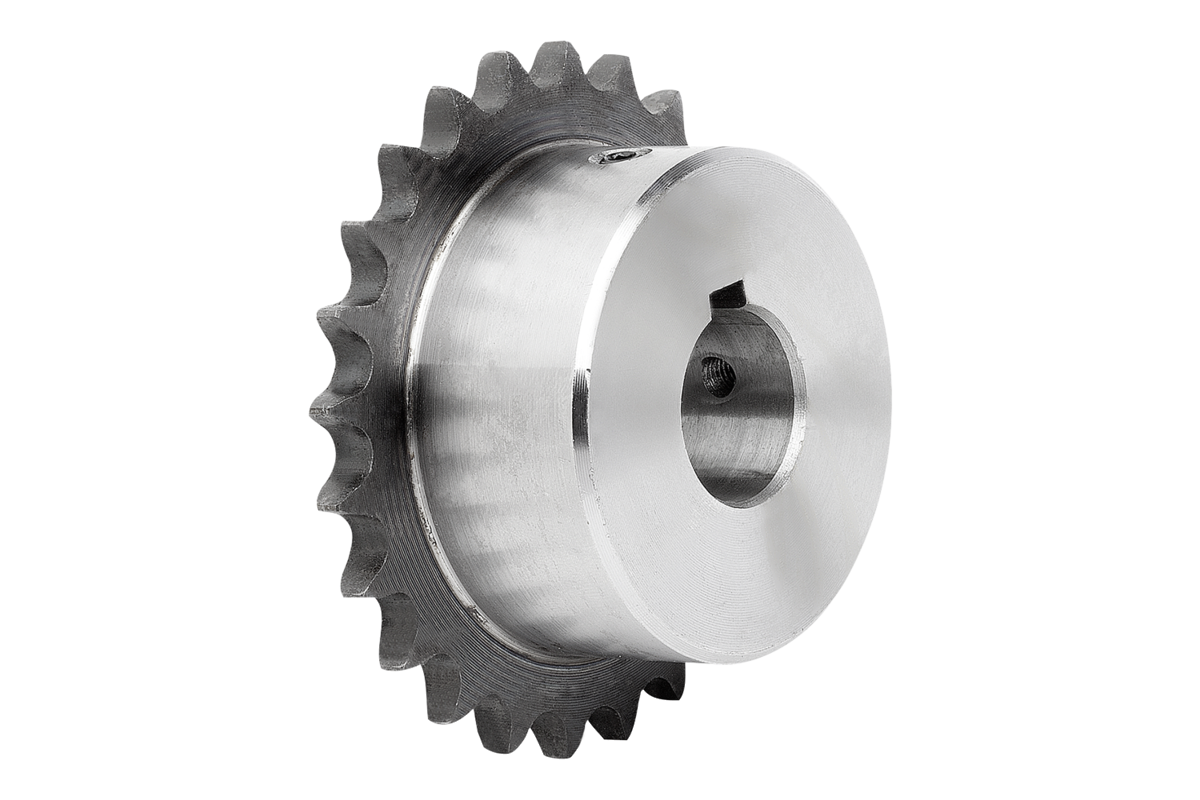

Sprockets single 3/8" x 7/32" DIN ISO 606, ready to install Form A

  • Suitable for roller chains acc. to DIN ISO 606
  • Teeth inductively hardened, HRC 50
  • With pre-boring and keyway acc. to DIN 6885
  • With hub on one side
Special features:

from £5.69

plus sales tax
  • 1(current)
  • 2
  • 3
112 results found
  • 1(current)
  • 2
  • 3

Description

Material
Steel C45.
Version
Bright.
Teeth inductively hardened ~HRC 50.
Note
Ready to install sprockets with hub on one side for DIN ISO 606 roller chains. Teeth are milled and inductively hardened.
Keyway acc. to DIN 6885 / BS 4235. The keyway is aligned with the tooth tip.
With two grub screws. One tapped hole aligned with the keyway centre, the other offset by 90°.
