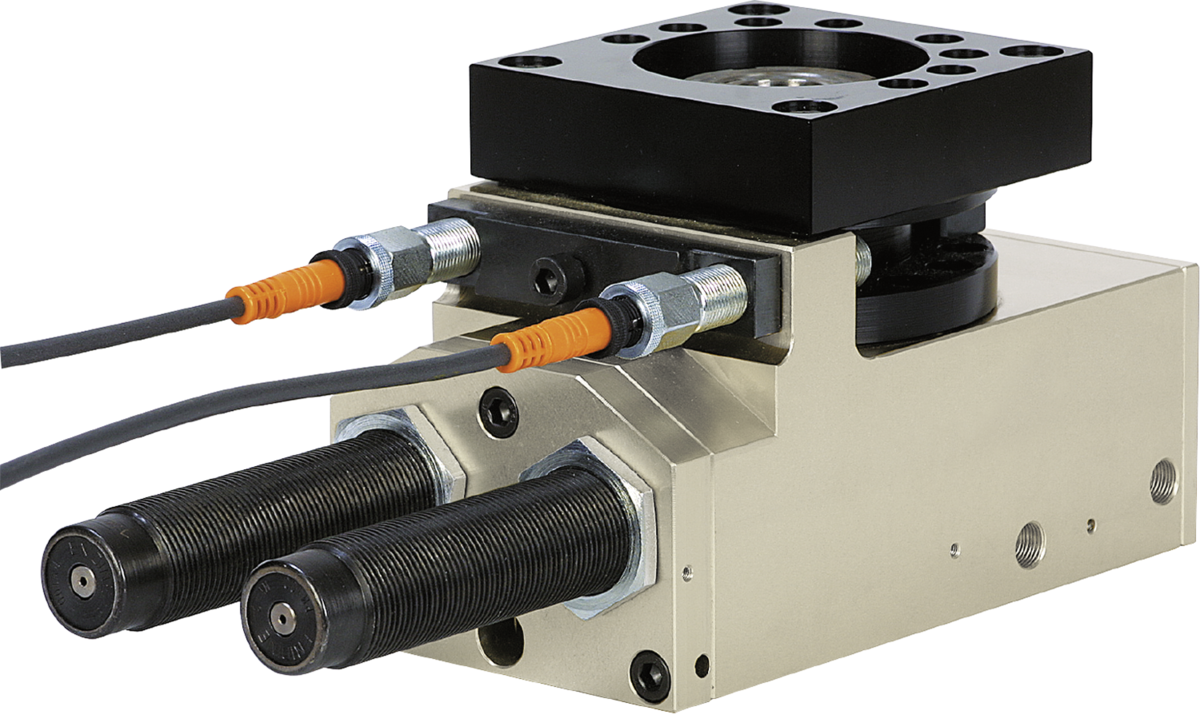

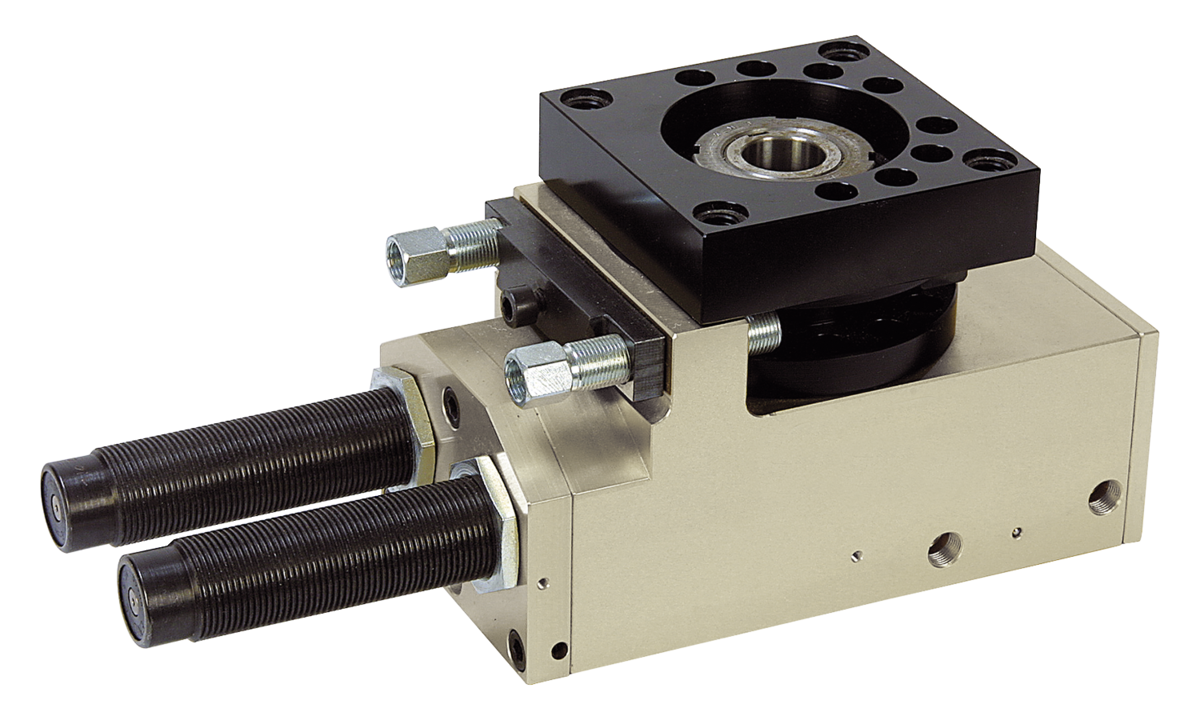

Rotary module pneumatic

  • With double-acting drive cylinder
  • Rotation angle infinitely adjustable from 0° to 190°
  • High fit precision between the modules via centring system
  • Hardened, external and variable stop system
  • Repeat accuracy ±0.01°
Special features:

from £1,946.44

plus sales tax


Housing high-strength aluminium.
Stop system steel.
Housing anodised.
Stop system hardened and black oxidised.
Maintenance-free pneumatic rotary module with double actuated drive cylinder. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 µm), dried, oiled or unoiled. Compressed air connection R1/8.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.

The 0° – 190° rotation angle is infinitely adjustable.

Repeat accuracy ±0.01°.

Shock absorbers are supplied.
