04567

Wedge clamp with countersunk screw, Form A

  • Suitable for series clamping
  • Specifically for small components
  • For high clamping forces
Special features:

from £16.13

plus sales tax

Description

Material
Carbon steel.
Version
Jaw plate hardened (33–39 HRC) and black oxidised.
Note

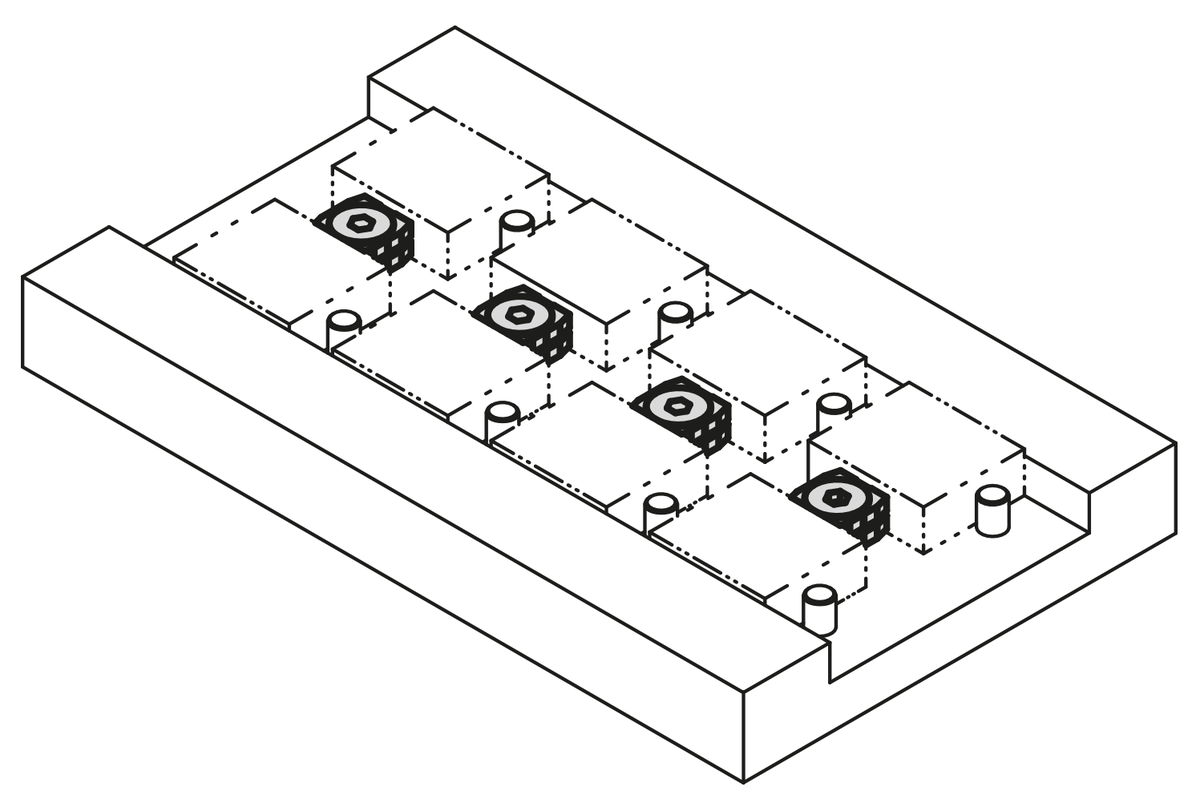

Due to the functioning principle, wedge clamps are suitable for clamping in series.
The wedges generate higher clamping forces.
Wedge clamps with pull-down effect.
Drawing reference
Dimension L refers to ≤ A.
Dimension H refers to ≥ A.

1) O-ring
